IPTV Headend 25 channels IP H.264 HEVC H.265 4K encoder Transcoder IPTV for Wowza, FMS Server, YOUTUBE, USTREAM streaming

FOB Reference Price:Get Latest Price
$5,999.00 - $6,999.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
Anystream400
Inputs/Outputs:
Two GbE IP port
Video Encoding:
MPEG-2,H.264/AVC ,H.265/HEVC
Number of channels:
25*SD/12*720P/5*1080P/2*4K
Output protocol:
UDP/RTMP/RTSP/HTTP/HLS
Audio encoding:
LC-AAC, HE-AAC and HE-AAC v2;MPEG-1 Layer, AC3,MP3
iptv transcoder:
transcoder iptv
hevc transcoder:
h265 transcoder
video transcoder:
h.264 transcoder
Application 1:
IPTV Headend Systems
Application 2:
IPTV OTT System Total Solution
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Carton , or as per customer's request.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description
Product Overview

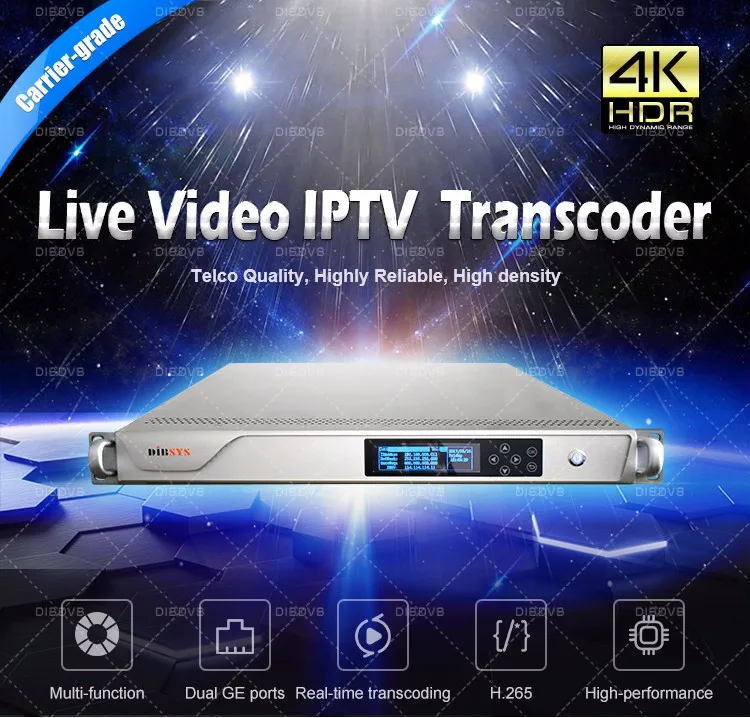

Anystream400 answers all market requirements and it is a suitable solution for Terrestrial, Satellite, Cable, IPTV,OTT networks. It is a real-time Max-channels transcoder, which can support 25*SD or 12*720p or 6*FullHD or 2* 4K streams Simultaneously. With the support for various encapsulation formats base on UDP, RTP/ RTSP, Pull/Push HTTP, RTMP, HLS protocols, it converts HD/SD streams H.264 or MPEG-2 to convert H.265/HEVC format, bitrate and resolution. The product can be configured to transcode up to 25 PIDs of H.264 video in a 1RU form factor, along with up to two audio PIDs per video PID.

Additional options for stream adaptation, such as deinterlacing, video scaling, frame rate conversion, and audio volume and sample rate conversion allow for serving set-top boxes, tablets, mobile phones and others.

Anystream400 provides the high bandwidth efficiency on the market, and the best video quality to end users. Purpose on Huge number of transcoded channels deployment fastly, Our R & D team also provides transcoding capable of 200 channels with high density, High reliability and Cost effective video headend distribution solution.

Key Features

1. High density 1-RU platform can transcode up to 25*SD or 12*720p or 5*Full HD profiles
2. Optimized for 800 Kbps for SD, 1.5Mbps for HD 720p, 3Mbps for HD 1080p
3. Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application
4. H.265/HEVC Main Profiles Level 5.1
5. Baseline, main profile & high profile with variable GOP
6. Picture-in-picture (PIP) operation supported
7. HD-to-SD down, SD-to-HD up conversion
8. GbE IP outputs –UDP, RTSP, RTMP,Pull/Push HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files
9. Flexible GOP structures with Reference-frame and B-frame edit
10. Frame rate down- and up-conversion
11. High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion
12. Support for Variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency
13. PCR correction to accurately correct several PCR of the input data
14. Based on embedded Ubuntu Linux via flashdisk
15. DVB Subtitle and Logo insertion
16. High contrast LCD display
17. Parameter template settings and imports
18. Real time preview of input video stream in encoding and configuration
19. Low power consumption and high reliability with MTBF(Mean
20. Time Between Failure) ≦87600 Hours
21. Real-time dynamic monitoring of each transcoding channel operation
21. Easy configuration via Web GUI
22. Designed for secure 24*365 operation

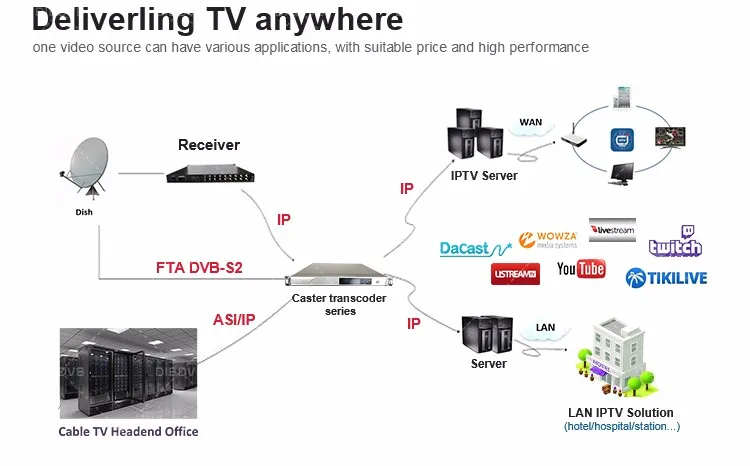

Main Application

>>Distribute Lowest bitrate HD Video to Ethernet
>>Bandwidth reduction for Internet/OTT streaming and wireless networks
>>IPTV live stream transcoding
>>Transcoding for multi-screens and devices for set-top boxes, tablets, mobile phones
>>Small/Middle-Scale Headends for Multiple System Operators
>>Upgrade H.264 to HEVC Video headend solutions
>>VOD archives from live streams

Specifications
Inputs and Outputs








Connector
Two Gig Ethernet Ports
RJ45 100/1000M - Auto Negot
MPEG-TS(MPTS or SPTS) Over IP input
MPEG-TS (SPTS) Over IP out
TS  Over UDP/RTP/HTTP
RTP over HTTP
FLV Over HTTP
RTMP
MP3 over HTTP
FLV
ASP
HTTP Live streaming Apple HLS (m3u8)
Pre-processing
LOGO insertion
Subtitle Overlay
Option Static or roll subtitle, up to 3 way
Deinterlace
default, Close, Linear, Blend, Bob, Yadif

PID Configuration
PMT/Video/Audio PID;
PCR delay/disp interval








Advanced Processing
In-loop De-blocking filter
Scene detection, CABAC.
CAVLC Entropy coding Automatic
PicAFF,MBAFF Interlaced coding Automatic
Flexible Macroblock Ordering(ASO) and Arbitrary
Slice Ordering(ASO) in Baseline profile
Flexible Macroblock Ordering(FMO) and Arbitrary
Slice Ordering(ASO) in Baseline Profile
8x8 vs, 4x4 Transform Adaptivity in High profile
Quantization Scaling Matrices in High profile
I,B and P Slices,Multiple Reference Frames
Video Processing
Bitrate Control
VBR, CBR, ABR, NearCBR
Frame rate
2-30fps
Screen Ratio
4:3, 16:9
Option Multiple concurrent outputs per each encoding input



Video codec
H.265/ HEVC Main profile Level 4.1&5.1
H.264 Main/High Profile 3.0- 5.1
H.264 Baseline Levels 1, 2, 3
H.263 Profile Levels 10, 20, 30
MPEG-4 SP, Levels 0, 0b, 1, 2, 3
Encoding delay
1000-1500ms
B-Frame
0-5
Reference Frame
1-6
Key frame rate
1-18
Video Bitrate
32kbps to 10Mbps
Video Delay
0-1000ms
Scale
Ordinary, Auto Padding intelligent Scale
Fast Mode
Quality Priority, Balanced, Speed Priority
MPEG-2 Input
H.265 Output
Max Channels
SD/480i inputs @4Mbps
SD @800kbps, 480p
25
720p inputs @10 Mbps
720p @2Mbps
12-14
1080i/p inputs @18 Mbps
1080p @ 4Mbps
5-6
4k/H.264 @20Mbps
4k @ 12Mbps
1-2


Resolution
3840x2160p(UHD)
1920x1080p,1280x720p
720x576p,720x480p,640x480p,480x360p,
Configurable
Audio Processing
Numbers of  encoding
2 audio Channels per one video source
(Provides up to 8 audio channels for customization)


Audio encoding
AAC,AACv2,AMR
D Digital(AC-3)
D Digital Plus(EAC-3)
MP2A,MP3A,Transparent
Audio Channel
Single, Dual, 5.1 Channel
Audio Track
0, 1, 2, 3
AV Sync
0s, 0.5s, 1s, 3s, 4s, 5s, 6s
Sample rate
8khz to 48khz
Bitrate rate
8kbps to 384kbps
Volume
Ordinary, Intensity1, Intensity2, Intensity3
AGC
On, Off
Management
Local interface
Front panel keypad and LCD
Configuration
Web browser interface
Port
RJ45, 10/100/1000M Base-T
Language
English
