DVB-S2/DVB-C/ASI/ip descramble to Clear MPEG-TS ip/asi Converter via Cam module,CI slot,Biss key for digital catv headend system

FOB Reference Price:Get Latest Price
$1,999.00 - $2,500.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
IRD1380
Input interfaces:
8xTuners,DVB-T2/T/S2/S/C/DTMB/ATSC/ISDB-T
Digital signal out:
UDP/RTP, Multicast/Unicast, IGMPv3, ARP
Video decoding:
MPEG-2 (MP @ ML), MPEG-4 AVC/H.264
DVB-CI Slots:
8
Type:
Digital
Audio decoding:
Dual stereo
Resolution:
full hd
Biss mode:
Support
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package, or as per customer's request.
carton. Size: 53*46*14cm.
One Set Per Carton
Port
Shanghai
Product Description

IRD1380 is a high-density, modular and CI decryption professional TS processor equipped with 8 independent tuners, which can be either of DVB-T/T2, DVB-S2/S, DVB-C, DTMB and ATSC types. It supports a wide range of application by combining 8 tuners processing capability with industry standard outputs including ASI and TS/IP.

IRD1380 has 8 DVB common interface slots capable of working with most of well-known CAS in the market to de-crypt multiple pay TV services. IRD1380 provides operators an ideal solution for multi receiving, re-multiplexing, descrambling and TS over IP operations, the compact 8 tuners and the powerful 8 CI decryption design make IRD1380 one of the most competitive product in the head-end market.

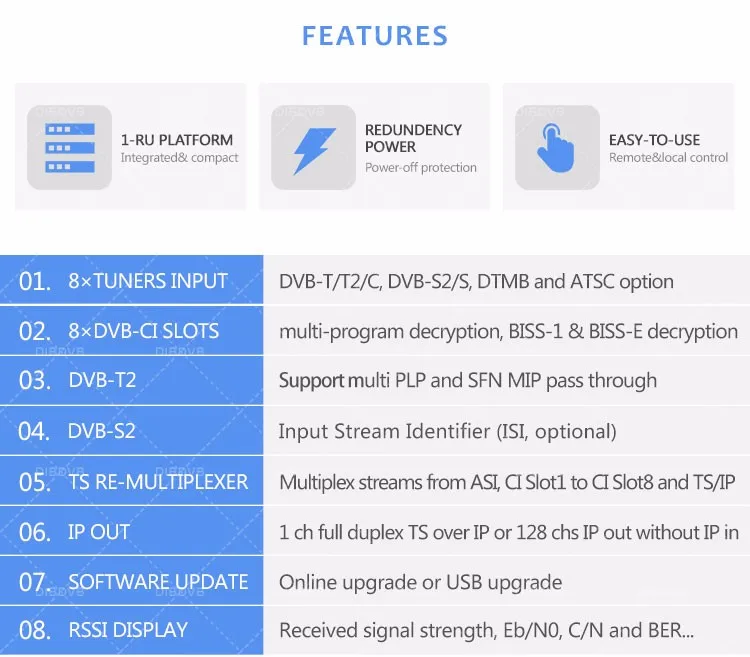

Features

◆8xTuners Input, Supports variety of input options DVB-T2/T/S2/S/C/DTMB/ATSC

◆Supports DVB-S2 Input Stream Identifier and DVB-T2 Multi PLP and SFN MIP pass through

◆Built-in TS re-multiplexer receives from ASI, CI Slot1 to CI Slot8 and TS/IP inputs

◆8×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption

◆8xASI output the transport stream from CI Slot1 to CI Slot8 or BISS decryption

◆1xchannel full duplex TS over IP or 128xchannels IP out without IP input

◆Remote Control and Supervision by SNMP v2, HTTP WEB

◆On Site software update through IP or USB

◆RSSI, received signal strength, Eb/N0, C/N and BER monitoring

◆Redundency power supply

Specification
DVB-S/S2 Tuner Input
DVB-S/S2 Tuner Input
Connector Type
8*F type female75Ω for Input
Input Frequency Range
950 ~ 2150MHz
Input Level
-25 ~ -65dBm
Symbol Rate
2 ~ 45MBaud
Roll-off Factor
DVB-S QPSK: 0.35,
DVB-S2 8PSK
0.35, 0.25, 0.2
FEC Code Rate
DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 QPSK
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10
DVB-S2 8PSK
3/5, 2/3, 3/4, 5/6, 8/9, 9/10
LNB Polarity Selection
Voltage 0, 13V, 18V selectable
LNB Band Selection
Tone 0/22KHz selectable
Satellite Selection
Command DiSEqC 1.0
DVB-C Tuner Input
Connector Type
8*F type female 75Ω for Input
Input Frequency Range
51 ~ 862MHz
Input Level
51 ~ 75dBμV
Symbol Rate
1 ~ 7MBaud (ITU J.83 Annex A)
Constellation
16QAM, 32QAM, 64QAM 128QAM,256QAM
Bandwidth
6MHz, 7MHz, 8MHz
Input Return Loss 7dB (typ.)
DVB-T/T2 Tuner Input
Connector Type
8*F type female 75Ω for Input
Input Frequency
104 ~ 862MHz (VHF/UHF)
Input Level
-20 ~ -70dBm
Constellation
DVB-T: QPSK, 16QAM, 64QAM
DVB-T2
QPSK, 16QAM, 64QAM, 256QAM
Bandwidth
6MHz, 7MHz, 8MHz
FFT Mode
DVB-T: 2K, 8K
DVB-T2
1K, 2K, 4K, 8K, 16K, 32K
DVB-T2
1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
FEC Code Rate
DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Input Return Loss 7dB (typ.)
DTMB Tuner Input
Connector Type
8*F type female 75Ω for Input
Input Frequency Range
46.5 ~ 866MHz
Input Level
-87 ~ -29dBm
Symbol Rate
7.56MBaud
Bandwidth
6MHz, 7MHz, 8MHz
Constellation
4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM
Guard Interval
PN420, PN595, PN945
Roll-off Factor
0.05
Interleaving Depth
240, 720
FEC Code Rate
0.4, 0.6, 0.8
ATSC Tuner Input
Connector Type
8*F type female 75Ω for Input
Input Frequency Range
54 ~ 864MHz
Input Level
-75 ~ -7dBm (ATSC 8VSB)
Symbol Rate
10.762MBaud
Constellation
8VSB
Roll-off Factor
0.115
Bandwidth
6MHZ
TS Processing
TS Input Management
Demux and Remux among and CI Inputs
TS Output Management
Demux and Remux for ASI output
Service and PID Management
Service and PID level for Remux, filtering and remapping
PSI/SI
PSI/SI table regeneration, NIT and SDT edition, LCN Edition and Re-generation
Descrambler DVB Common Scrambling Algorithm (CSA)
BISS Mode
BISS-1, BISS-E
Common Interface
8 x PCMCIA slots, compatible with Conax,Cryptoworks, Irdeto, NDS, Mediaguard, SECA, Viaccess and more
ASI Output
Connector Type
9 independent BNC female, 75Ω
Standard
DVB-ASI, EN50083-9
Output Bit Rate
≤ 200Mb/s
TS Processing
8xASI out pass through the TS from CI 1 to CI8, 1xASI Out from Remux
ASI Input
Connector Type
1*BNC female, 75Ω
Standard
DVB-ASI, EN50083-9
Input Bit Rate
≤100Mb/s
TS over IP
Connector Type
1×RJ-45, 100/1000 Base-T
Effective Bit Rate
400Mb/s for 128 channel IP Out without IP in 80Mb/s for full duplex 1 channel
Protocol UDP / RTP, Multicast / Unicast, IGMPv3, ARP
Alarm
Connector Type
1×D-sub 9 male
Switching Condition User Defined
Control & Monitoring
Connector Type
1×RJ-45, 10/100 Base-T, for equipment IP Control
Remote Control
SNMP, HTTP (Web Interface)
Local Control
LCD display and 6-key keypad
Serial Port
1×RS-232 D-sub female, for debug use only
Equipment Upgrade
Embedded FTP loader and Telnet
Environment
Power Supply
AC 90V ~ 250V, 50/60Hz
Power Consumption
30W (exclusive of LNB power)
Operating temperature
0 ~ 45℃
Storage temperature
-10 ~ 60℃
Operating Humidity
10 ~ 90%, non-condensed
Dimension
430mm x 255mm x 44mm
Weight
3.5kg
Certification
EMC
EN 55024:1998+A1:2001+A2:2003,
EN 55022:2006+A1:2007,
EN 61000-3-2:2006
EN 61000-3-3:2008
FCC
Part 15 Class B
LVD
EN 60950-1:2006 + A11:2009
