Advanced radio & tv broadcasting equipment MPEG-2/MPEG-4 AVC Contribution Magnum Encoder

FOB Reference Price:Get Latest Price
$1,499.00 - $2,499.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
ENC3411 plus
Inputs:
1xSDI, 1xCVBS, 1xYPbPr and 1xHD MI
Output:
2xASI ; IP
Video encoding:
MPEG-2 SD/HD and MPEG-4 AVC/H.264 SD/HD
Audio encoding:
MPEG1 Layer II, HE-AAC (v1&v2), LC-AAC and DD AC3 (2.0/5.1)
Low Delay options:
150ms, 200ms, 350ms, 650ms
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Device: 482 (L)X485(W)X 44mm(H)
Carton: 580 (L)X480(W)X 140mm(H)
Packing: 1 pc per carton, G.W: 6.5Kg
Customized packing according to customer's needs.
Port
Shanghai
Product Description

ENC3411 Plus has proven itself as the most advanced encoding platform for TV Studio Station,Cable, Satellite, IPTV, Terrestrial or ATSC applications available today. The hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC HD broadcasting applications with four pairs of Audio inputs. The significant advantage in low latency and D Digital AC3 audio encoding. For telcos and other IP-based service providers, the encoder is highly bandwidth efficient MPEG-4 CBR encoding and native IP output make it possible to deliver exciting and competitive HD services. Espically use in Multi-Audio channel MPEG-2 HD 4:2:2 in High-End Cable TV or ATSC Application.

ENC3411 Plus is the industry's HD encoder based on ASIC processing technology and provides full 20-30% compression gain over the first generation of DSP-based MPEG-4 HD encoders. Additionally, embedded audio as well as support of closed captions transferred in the HD-SDI and CVBS means efficient routing and simpler back-up system designs. Further more, to the encoding format 4:2:0, also supports 4:2:2 encoding for single channel encoding in contribution applications, and can be combined with LOGO,OSD and QR Code insertion of your customized design.

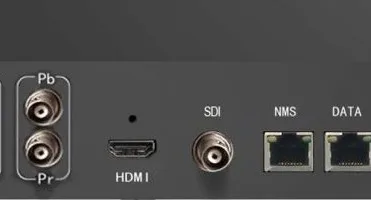

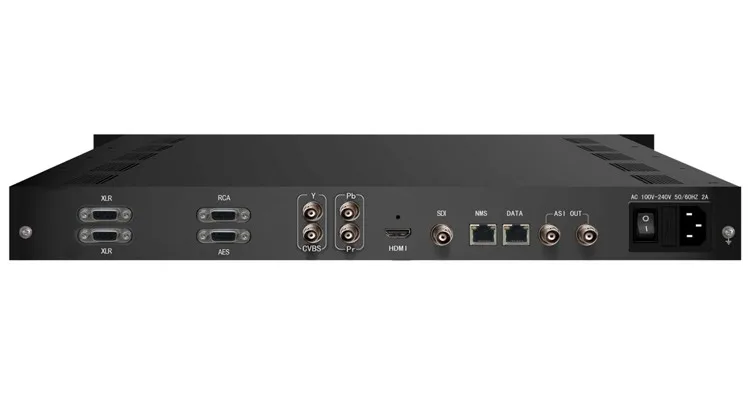

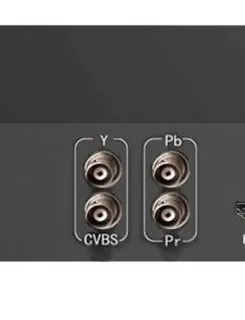

HD MI, SDI

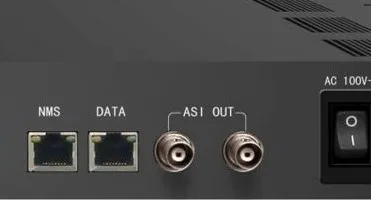

ASI OUT

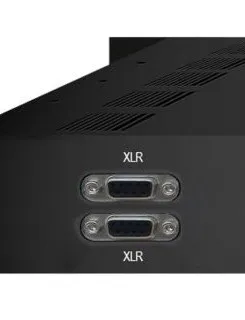

XLR

RCA, AES

CVBS, YPbPr

Key Features

1.Simultaneous MPEG-4 AVC and MPEG-2 SD/HD encoding per chassis

2.Based on Magnum D7 Pro Newest generation ASIC and FPGA technologies, offers unequaled gains in video compression efficiency

3.1*HD-HD MI/HD-SDI/YPbPr,Composite video inputs

4.Up to 4 audio stereo or 8 mono channels with Four XLR,Four RCA, Embeded SDI,one AES audio inputs

5.Embedded audio on HD-SDI input

6.MPEG1 Layer II, LC-AAC, HE-AAC v1, HE-AAC v2 and D Digital AC3 (2.0/5.1) audio encoding

7.D Digital AC3 pass through audio encoding (option)

8.Broadcast-grade Video downscale

9.Low resolution channels for applications such as picture-in-picture (PIP) Option

10.Aspect Ratio:4:3, 16:9


11.Low latency mode

12.Operators can insert advertisement picture, own LOGO, QR code,OSD content during encoding picture

13.4:2:2/4:2:0 encoding profiles for highest video quality (4:2:2- MPEG-2 only)

14.Advanced Closed Caption insertion and transmission:CEA 608 and CEA 708

15.Support video buffer, free to switch video sources (all video interface available)

16.Flexible GOP structures with Adaptive I-frame and B-frame insertion

17.Simultaneous outputs via UDP/IP, DVB-ASI

18.Bitrate: 0.25-60Mbps, Only CBR control

19.Management via embedded Web server

20.One rack unit high, low-power consumption, stackable


Application

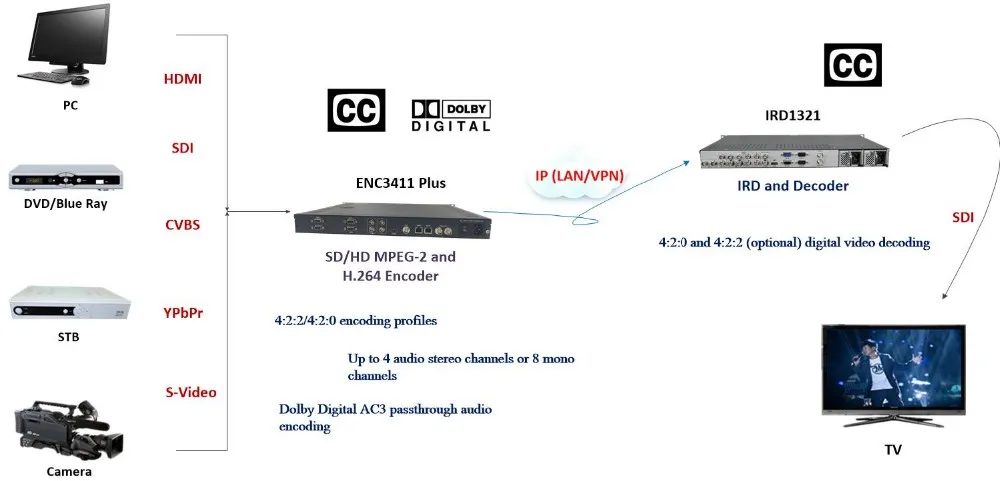

1.HD MPEG-2 for Digital Cable and ATSC

2.Point to Point video and audio over IP In TV studio station

3.Remote live Rebroadcasts and real-time transmission

4.Better quality and increased reach for IPTV

5.Increased channel capacity for Satellite

Specifications
Video Inputs
1×SDI
SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M)
800mV Level. 75Ω unbalanced, BNC
Return loss
≥ 15 dB, 5 to 1.4 GHz
Bit rate
1.485 Gbit/s ±10 ppm
1×CVBS
PAL, NTSC, BNC, 75Ω unbalanced, BNC
Return loss
≥ 35 dB, 10Hz to 5.5MHz
1×YPbPr, 1×HD MI
Audio Inputs
Default
Embedded audio
up to 4 stereo pairs or one multi-channel :
1*Digital (AES3/EBU),
4*Analog R /L and 4*XLR (balanced/unbalanced)
9-pin sub-D female Connector
Stream output
DVB-ASI
2 identical ASI output,75Ω,BNC,Bitrate 1 to
100Mbps,188Bytes, Burst/Byte Mode
RJ45 Port
MPEG-2 Transport Stream over UDP/IP, 100M Base-T
Ethernet(multicast/unicast), 7x188Bytes
Ts out Filter Null Packet
Total Bitrate
0.5-60Mbps(Should be More than TS bitrate)
Down/Cross Conversion
Source
Input
 Output
HD MI, SDI, YPbPr
1920×1080i
1920×1080,1440×1080,
1280×1080i, 960x 1080i
HD MI, SDI, YPbPr
1280x720p
1280×720, 960×720p, 640×720p
SDI, CVBS
720×576i
720×576, 704×576, 640×576, 544×576,
528×576, 480×576, 352×576
SDI, CVBS
720×480i
720×480,704×480,640×480,
544×480,528×480,352×480
Frame Rates
50fps,59.94fps,60fps
Video Processing

Video Compression
MPEG2 and H.264
HP@ L3 and L4 and L5; MP@ L3 and L4
BaseLine(h.264)@L2 and L3
Simple(mpeg2)@L2 and L3
Bitrate range
0.52Mbps ~ 60Mbps(MPEG-2)
0.256Mbps ~ 60Mbps(H.264)
Rate Control
CBR
GOP Structure
Auto, IP, IPB, IPBB, IPBBB
Aspect Ratio
4:3, 14:9 (for SD video), 16:9 (for HD video)
Chroma
4:2:0(MPEG2/AVC), 4:2:2 (for MPEG-2);
Code Mode
Frame,Field,MBAFF
SyncLoss Image
Color Bar;Black Frame
Advanced retreatment
Noise reduction,Sharpening
Audio Processing
Audio Inputs
Embedded SDI (up to 4 pairs per video input)
4* R/L analog inputs,4* XLR,1*AES/EBU

Encoding
MPEG-1 Layer II, HE-AAC (v1&v2)
LC-AAC; Digital D-AC3 5.1
Digital D AC3 pass through-Option
Sampling rate
48KHz
Resolution
24-bit
Operating Modes
Stereo, L-Mono, R-Mono
Volume
Level 1-4
Audio Delay
-500 to +500ms
Bit-rate
32Kbps~384Kbps
Low Delay Encoding
150ms (No B frames)
200ms
350ms
650ms
H.264
he max number of B frames is 2 for 29.97/25Hz,
3 for 60/50Hz
MPEG-2
the max number of B frames is 1 for 29.97/25/24Hz,
2 for 60/50Hz
Data Processing
Insert advertisement  picture
LOGO, QR code, OSD-Option
CC (closed caption)
EIA 608 and EIA 708 (for CVBS/SDI in)

PSI/SI edition
PMT PID,VIDEO PID
PCR PID, PCR Interval
Stream ID; SDT Insert
Management
LCD/keyboard and web management
Language
English
Ethernet software upgrade
Environmental
Power consumption
25W
Operation temperature
0~45℃
Storage  temperature
-20~80℃
Voltage range
100 to 120/200 to 240V AC ±10%; 50/60Hz
Dimensions
482mm×405mm×44.5mm (W×D×H)
Weight
4.5Kg
Ordering Information
Product category
Product Model
Detail Description
Application


Similar Encoders

PREMIUM SD
 MPEG-2/AVC ENCODER
ENC3111
1Ch SD-SDI/AV; 2Ch RCA/XLR Audio Encoding; MPEG2/H264 SD;
4:2:0; DVB-ASI Cascading; AAC/MPEG1L2; Small/SD Res; CBR/VBR
Point to Point Enc/Dec;
DVB/ISDB-T On Seg,
IPTV



Similar Encoders


PREMIUM HD/SD ENCODER
ENC3411
1Ch SD/HD-HD MI/HDSDI/Ypbpr and 1Ch SD-AV;
2Ch RCA/XLR/1Ch AES Audio Encoding;
MPEG2/H264 SD/HD; 4:2:0/4:2:2;
 DVB-ASI Cascading;
AAC/MPEG1L2/AC3Pass;
Small Res PIP/HD_SD res; CBR

Point to Point Enc/Dec;
DVB/ISDB-T On Seg,
IPTV

Related products
Professional ISDB-Tb Modulator
MOD6500
TS(one Layer) /BTS(3 Layers) Over ASI/IP Input; linear/No-Linear DPD; 30~960MHz; MER>42dB;
10Mhz/1pps In and Loop out;

ISDB-T/Tb


Related products

Digital TV UHF
 Transmitter
DTT5900
Typical powers: 100/200/300/800W; Single/Broadband freq;
470 to 860MHz;
Up to 80Mhz band pass filter;
Low power consumption and minimized non-linear distortion; AGC;


ISDB-T/Tb
Our Company

With years of export experience along with best quality, advanced technology and excellent service, Dibdvb Technology has won numerous customers' trust and support all over the world.

We are mainly engaged in Broadcast tv and iptv business which includes the following several kinds:


1. Carrier grade broadcast cable tv equipments: Broadcast Encoder and Transcoder, Professional IRD, Mux and Scrambler, Modulator, Transmitter and Set top box
2. Carrier/Economy grade multiscreen iptv encoder/transcoder
3. Digital Video Modulator with HD MI/CVBS inputs, DVB-C/T/ISDB-T/ATSC modulator in 1RU/Compact Chassis
4. Broadcast DVB-C/T2/MMDS solutions
5. Carrier grade iptv solutions
6. Hotel tv systems base on ALL-IP or ALL-RF solution
7. Docsis3.0 CMTS Over Coaxial Cable to Internet
8. OLT and ONU GEPON

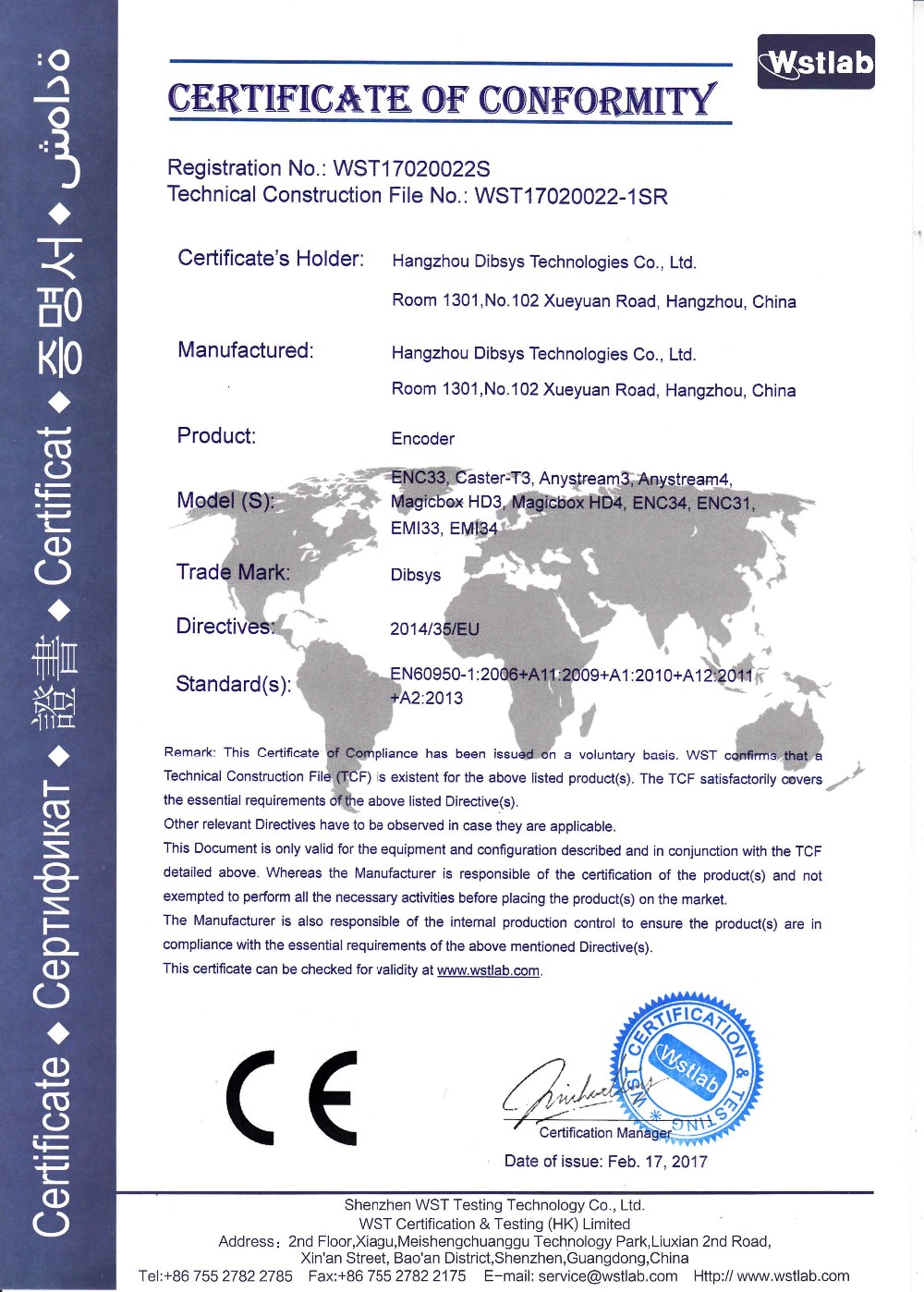

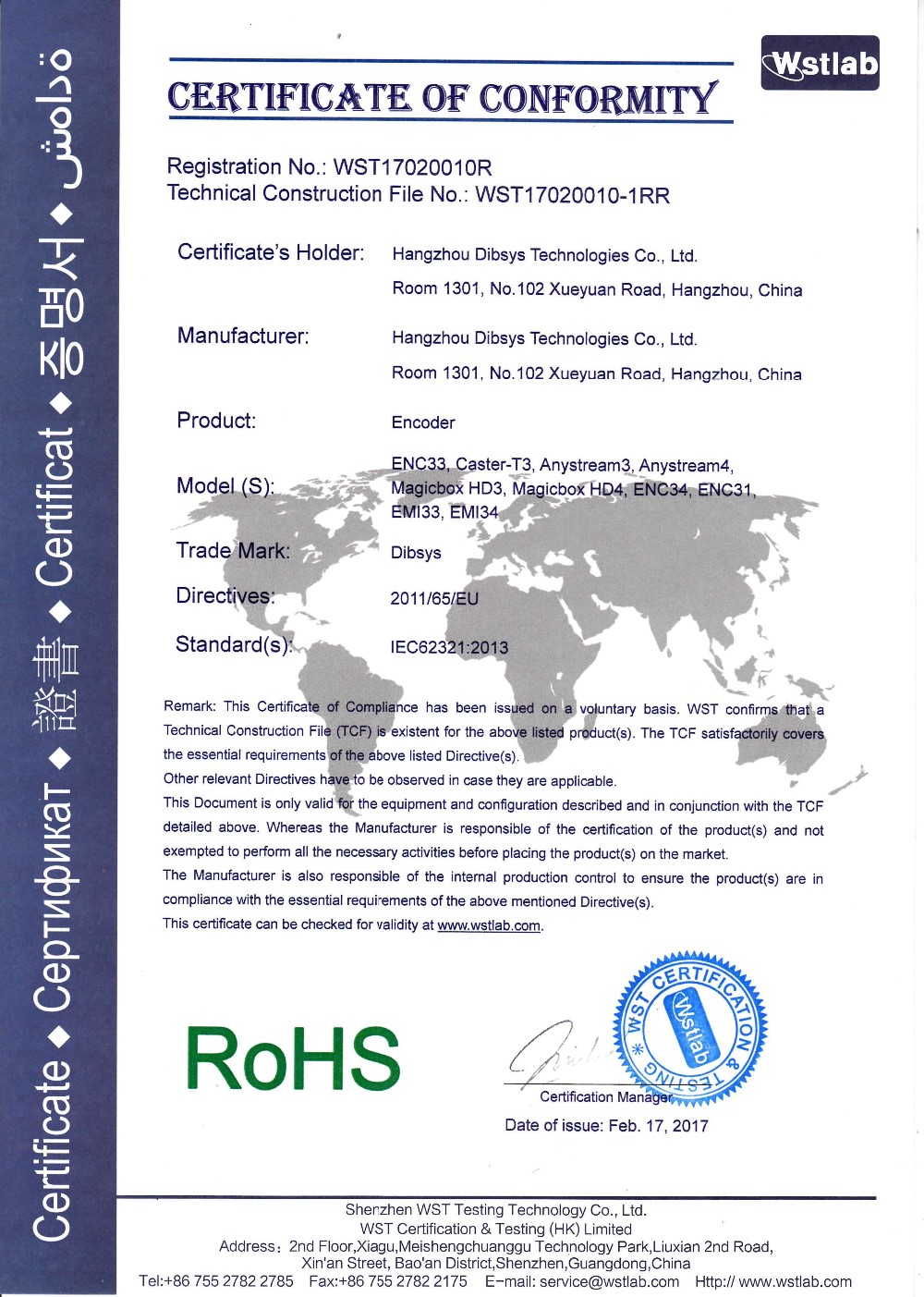

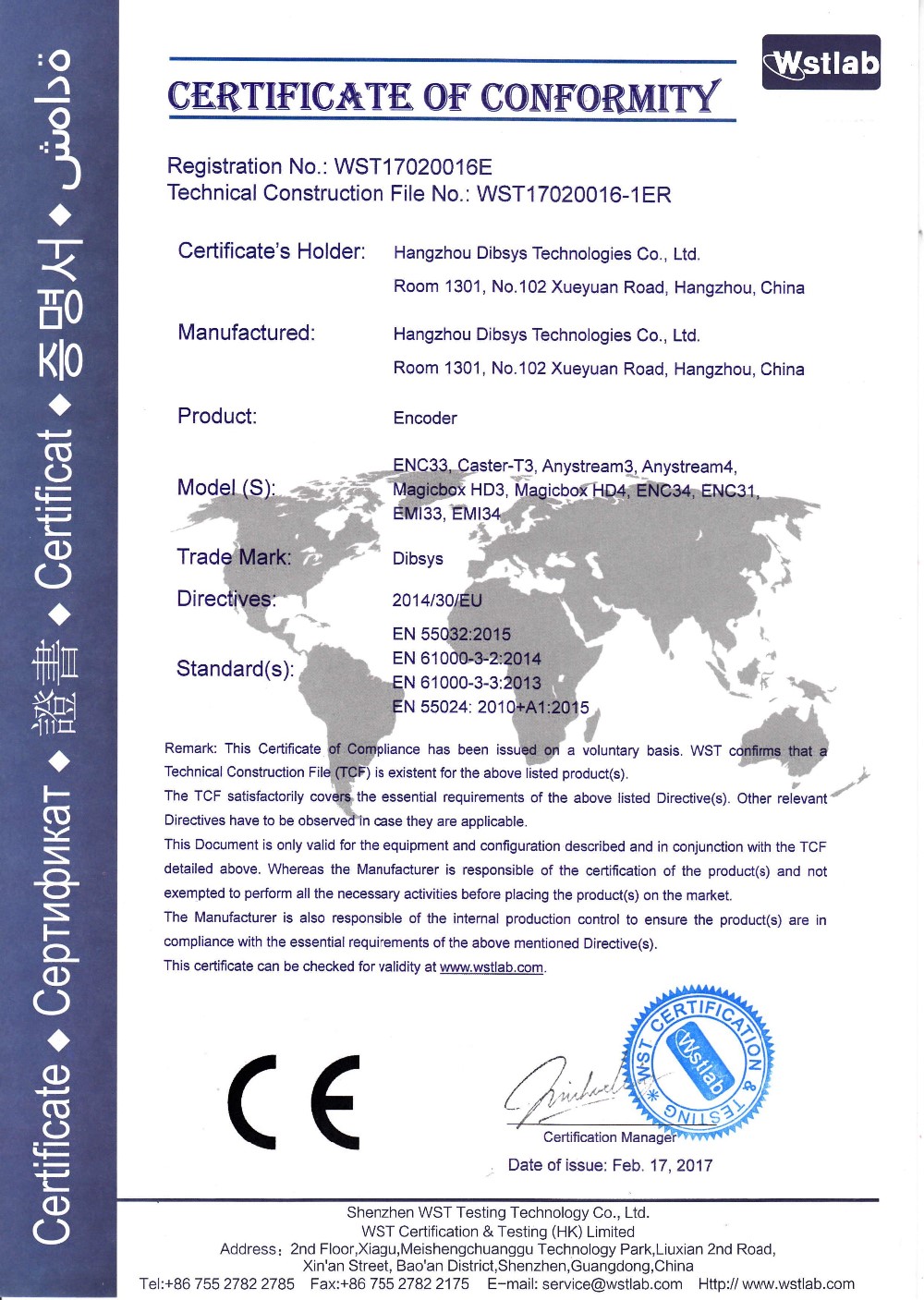

Certifications
