High video quality 4 in 1 H264/mpeg2 hd mi cable tv digital encoder AC3 with wireless video atsc transmitter

FOB Reference Price:Get Latest Price
$1,899.00 - $2,500.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
ENC3441
Video inputs:
4x HD MI(HDCP)
Output:
Ethernet Port (RJ45), 2 ASI
Video resolution:
1080p(only h.264)1080I,720P@50,60,59.9Hz
Audio Codec:
MPEG1 Layer II, HE-AAC (v1&v2) and LC-AAC, AC-3
Video Codec:
MPEG-2/H.264
Chroma sample:
4:2:0; 4:2:2
IP stream out:
MPTS/4xSPTS
Protocol:
Support UDP RTP Multicast Casuistic
Application 1:
Digital TV Head-end System
Application:
Live Streaming
Supply Ability
Supply Ability:
500 Unit/Units per Month mpeg4 encoder
Packaging & Delivery
Packaging Details
The package of IP video encoder is Export Standard Carton Package, or as per customer's request.
carton. Size: 53*46*14cm.
One Set Per Carton
Port
Shanghai
Lead Time :
Shipped in 5 days after payment
Product Description

ENC3441 has proven itself as the most advanced encoding platform for DVB-C QAM Cable, USA ATSC Off Air, DVB-T, DVB-C, DMBT, ISDB-T Clear Modulation applications available today. The hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC HD broadcasting applications with Low latency and D Digital AC-3 Audio, closed captioning and redundant AC power supplies support.

ENC3441 supports the most demanding video applications. It offers codec and transport flexibility, interoperability and feature richness, and equipped with 4 channels HD MI or HD-SDI inputs and multiple codec standard (MPEG-2 and MPEG-4 AVC/H.264 video encoding and MPEG1 Layer II, HE-AAC, LC-AAC, D AC3 audio encoding). It provides ultra-high quality video for your contribution workflows, IP as well as the DVB ASI output that meets MPEG-TS stream standard. The product is ideal for a broad range of applications including contribution and distribution.

Features

●Superior-quality low-bitrate MPEG-2 and MPEG-4 AVC encoding of SD or HD video pre-processing technologies

●Up to 4 channels SD/HD-SDI or HD MI per chassis (1-RU)

●Automatic SD & HD Detection

●1080p(only h.264),1080i,720p@50/60/59.94fps

●Mpeg-1 L2,Mpeg2-AAC,Mpeg4-AAC,AC3-5.2 audio encoding

●VCT(Virtual Channel Table) support for 8VSB ATSC and DVB-C QAM

●Flexible GOP structures with B-frame and P-frame insertion in Manual of Low delay mode

●18Mbps MPEG2 HD application in DVB-C and ATSC standard

●The dialogue normalization function of AC3 encoding nicely

●Low Latency available 70-120ms

●CC (Closed Caption) EIA 608 and EIA 708

●Simultaneous output via 4*SPTS/MPTS over UDP/RTP IP,ASI

●CBR & VBR rate control

●PCR correction to accurately correct several PCR of the input data

●PSI/SI information creation by automatc or external

●Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

●Easy-to-Use System Management via Web/LCD Panel

●Dual Power Supply Support

Applications

●Lowest latency encoding

●Diverse Application Needing AVC and MPEG-2 Flexibility

●Satellite, ATSC, Cable TV headend applications

●Concurrent ASI and IP delivery for multipath transmission

Specifications
Input Interfaces
Number of Channels
4 Ports
SD-SDI
SMPTE 259M - 270Mbit/s
HD-SDI
SMPTE 292M - 1.485Gbit/s
Connector
1x BNC (75 Ohm)
HD MI 1.4a HDCP
Embedded audio via SDI, HD MI
Stream output
2× ASI outputs, ports, BNC interface
10/100M Base-T Ethernet, RJ45
MPTS and 4*SPTS over IP, DVB
Filter Null packet
7x188bytes TS packet length
UDP, RTP/UDP Multicast, Unicast
Total Bitrate
<100Mbps
Video Processing
Resolution
1920×1080p, 1920×1080i ,1280×720p, 720X576I, 720X480I
Frame rates
50, 59.94, 60fps
Encoding
MPEG-2; MPEG-4 AVC/H.264
MPEG-2 Bit-rate
1.0 Mbps ~ 19.5Mbps
H.264 Bit-rate
0.5 Mbps ~ 19.5Mbps
Profiles
H.264 High, Main, Baseline Mpeg2 High,Main
Levels
Level 5.2-5.1
Level 4.2-4.0
Level 3.2-3.0
Level 2.2
Bitrate Control
VBR, CBR
GOP Structure
B frame=2(<=3); P frame=4(<=6)
When set Normal in Low delay,
Could be change B, P frames
Aspect Ratio
4 : 3, 16 : 9
Chroma
4:2:0(MPEG2/AVC)
Low Delay
Normal 300-500ms
Mode 1 100-300ms
Mode 2 70-120ms
Advanced Preprocessing
Noise reduction, Sharpening
Audio Processing
Encoding
MPEG-1 Layer II
HE-AAC (v1&v2), LC-AAC
D AC-3 (option)
Sampling rate
48KHz
Resolution
24 bit
Bit-rate
64, 96, 128,192, 256, 320Kbps
Audio Delay
-1000 ~ +1000ms
Audio Gain
0 – 400%
Dialogue  normalization
-31 to -1dB
Data Processing
Closed Captioning
EIA 608, EIA 708, Line 21, Off(Only for HD-SDI)

PSI/SI edition
PMT PID, VIDEO, Audio, PCR PID,
Service ID Program Name, Service Provider  PCR Interval
PIS/SI Creation
NIT, SDT, PMT Select to Auto, External, Close
VCT
(Virtual Channel Table)
Mode: CVCT,TVCT
Major/Minor Channel Number
Modulation Mode/Carrier Frequency/TSID
Management
Local interface
LCD + control buttons
Configuration
Web Interface
Port
RJ45, 10/100BaseT
Language
English
Save/Restore/Facture
Set/Backup/Load Setting/Reboot
Environment
Cooling
air flow front to side
Voltage range
100 to 120/200 to 240V AC ±10%; 50/60Hz
Operation temperature
0 ~ 45℃
Storage temperature
-20 ~ 80℃
Dimensions
482mm (L) x 400mm (W)x 44mm (H)
Weight
4.5Kg

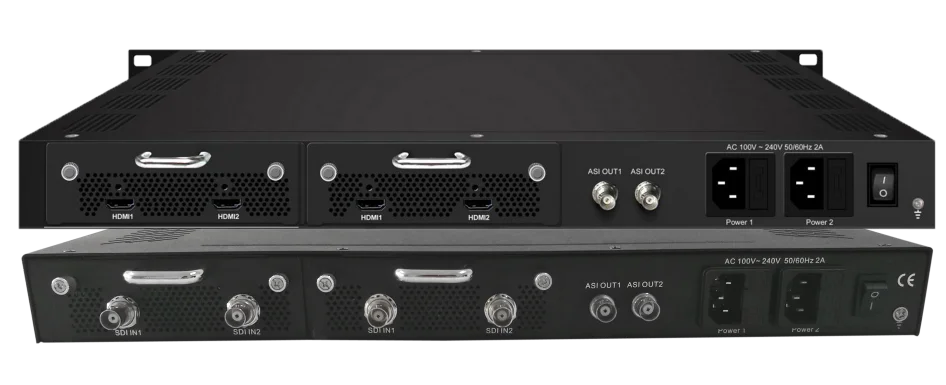

Products Information
Models
Description
ENC3441
4Channels HD MI Inputs, Option-AC3
ENC3445
4Channels SD/HD-SDI Inputs, Option-AC3
ENC3440
4Channels HD MI/YPbPr/AV inputs, Option-AC3
