Product Description

                                                                                 DTV Media Processor
DMP500 Today’s digital systems demand powerful, flexible, multipurpose video processing and compact solutions that allow the service provider to support new network architectures. This 1RU case comes with 6 independent hot-swappable module slots. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, receiving,descrambling, modulating processing and the combination of all these functions. DTV Processor is the next generation of intelligent headend processing equipment where the combination of compactness and flexibility leads to a cost-effective solution. Based on our experience, DMP500 brings operational and economic benefits in Video delivery applications

Key Features

1.High density modular 1RU Chassis with 6 Hot-swappable modules slots
2.Hot Swappable and Dual redundant power supply design
3.Low Power consumption and high reliability in 24/7 no-stop operation
4.Support Re-multiplexing/Grooming: PID remapping, PCR correction, generate PSI/ SI table automatically
5.Support Up to 2 Gbps TS Stream output,2 port RJ45/SFP interface without occupied any module space
6.Easy upgrade to new function with only module replacement via web management
7.Sample of Typical application in digital TV headend equipment

Specifications

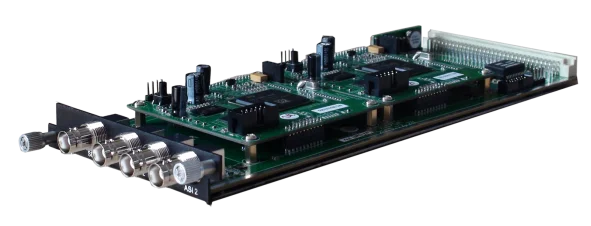

4 ASI/IP Multiplexing Module (CX504)

CX504.pngASI inputs/outputs: 4 ASI bi-direction, BNC 75Ω

IP inputs/outputs: 2 100/1000M Ethernet Port
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically

Stream In: maximum 4 ASI input, 256×2 IP input
Stream Out: maximum 4 ASI output , 256×2 IP output

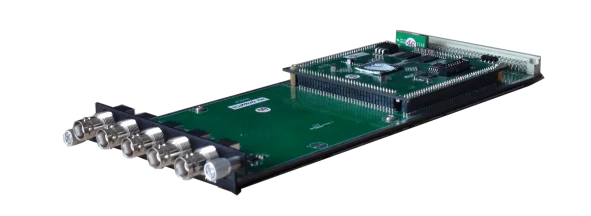

5 ASI Multiplexing Module (CX505)


ASI inputs/outputs: 5 ASI bi-direction, BNC 75Ω

Stream in: maximum 5 ASI input
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically

Stream out: maximum 5 ASI output





4 CVBS Encoding Module (CX214)

CX214.pngEncoder inputs: 4 CVBS video inputs, 4 Stereo Audio inputs (BNC 75Ω)
Video format: MPEG-2
Image format: PAL, NTSC SD signal
Input resolution: 720×480_60i, 544×480_60i, 352×480_60i
352×240_60i, 320×240_60i, 176×240_60i, 76×120_60i720×576_50i, 704×576_50i, 640×576_50i, 352×288_50i320×288_50i, 176×288_50i, 176×144_50i,
GOP structure: IBBPB
Video bitrate: 0.1Mbps~8Mbps each channel
Audio processing: Audio format:MPEG-1 Layer 2, AC3
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 128Kbps, 192kbps, 256kbps, 320kbps, 384kbps each channel

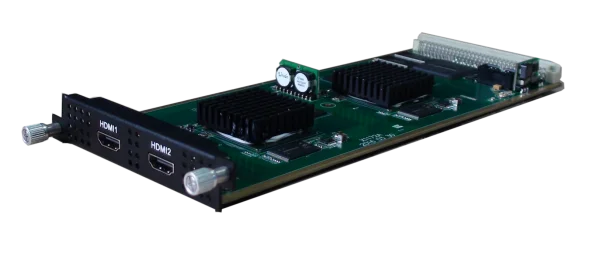

2 HD MI Encoding/Transcoding Module (CX202A)

CX202A.pngEncoder inputs: 2 HD MI inputs
Video Encoding
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution: 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3
Video bitrate: 0.5 ~ 19.5Mbps for H.264 encoding
                      1 ~ 19.5Mbps for MPEG-2 encoding
Audio Encoding
Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, D Digital AC3 (2.0)
Sampling rate: 48KHz
Audio bitrate: 64Kbps-320kbps each channel
Video Tanscoding
2*MPEG2 HD → 2*MPEG2/H.264 HD
2*MPEG2 HD → 2*MPEG2/H.264 SD
4 *MPEG2 SD → 4 *MPEG2/H.264 SD
2* H.264 HD → 2*MPEG2/H.264 HD
2* H.264 HD → 2*MPEG2/H.264 SD
4* H.264 SD → 4 *MPEG2/H.264 SD
Audio Tanscoding: MPEG-1 Layer 2, AAC and AC3 any-to-any or pass through

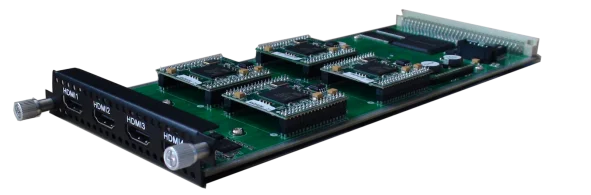

4 HD MI Encoding Module (CX224)

CX224.pngEncoder inputs: 4 HD MI inputs

Video Processing
Video format: MPEG-4 AVC/H.264 encoding
Input resolution:
1920×1080_60P, 1920×1080_50P,  1920×1080_60i, 1920×1080_50i,
1280×720_60P,1280×720_50P, 720×576_50i,720×480_60i
GOP structure: IBBP
Video bitrate: 0.8Mbps ~ 19Mbps each channel
Rate Control: CBR/VBR

Audio processing
Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 passthrough
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 64Kbps ~ 320Kbps each channel
Audio Gain: 0-400

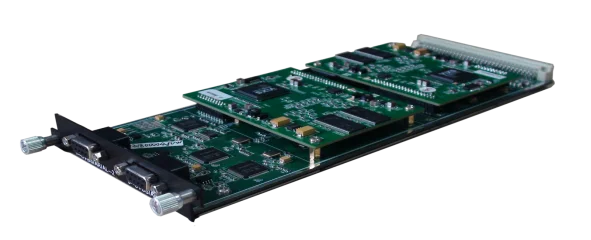

2 HD-SDI Decoding Module (CX702)

CX702.pngASI inputs: 2 ASI bi-direction, BNC 75Ω

Decoding
Video Format: MPEG-2/H.264
Resolution: up to 1080p-25/30f
Audio Format: MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1),

AC3 Passthrough
Support Dual Audio Out, CC/Subtitle
Stream In: 1-2 ASI input
Video/Audio Out: 2 HD/SD SDI output

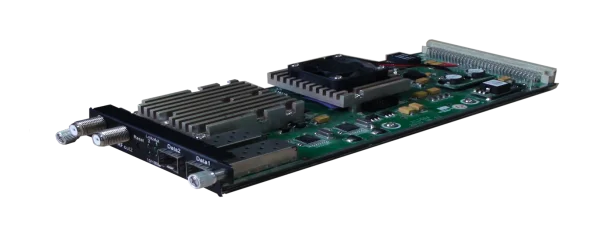

16/32 RF Modulating Module (CX316/CX332)

CX316.CX332.pngIP inputs/outputs: 512×2 IP input, 2 100/1000M Ethernet Port (Optical)

RF outputs (DVB-C): F type
16/32 channels of multiplexing, scrambling and modualtion.

Multiplexing
Maximum PID Remapping: 180 input per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting,  generate PSI/ SI table automatically

Scrambling
Maximum simulcrypt CA: 4
Standard: ETR289, ETSI 101 197, ETSI 103 197
Connection: Local/remote connection

Modulation
Standard: EN300 429/ITU-T J.83A/B
MER: ≥40db
RF frequency: 50 ~ 960MHz, 1KHz step
RF output level: -20 ~ +10dbm (87~117 dbµV), 0.1db step for all carriers
Symbol Rate: 5.0Msps ~ 7.0Msps, 1ksps stepping
Constellation: 16/32/64/128/256QAM
Output: 16 non-adjacent carrier outputs within 192M bandwidth
Output: 32 non-adjacent carrier outputs within 384M bandwidth

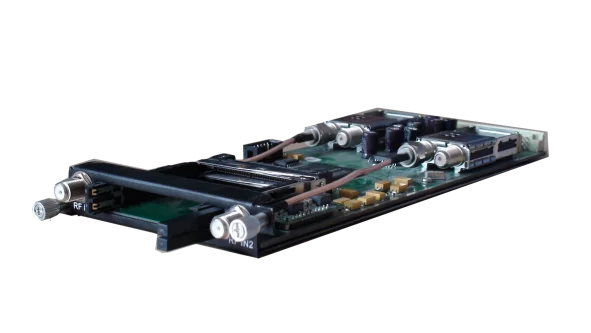

2 DVB-S/S2 Descrambling Module (CX902)

CX902.png DVB-CI: 2 independent common interface slots
Standard: DVB-S/S2
 DVB-SDVB-S2
Input Frequency:950-2150MHz950-2150MHz
Symbol Rate:QPSK 2~45MbaudsQPSK 1 - 45Mbauds
8PSK 2 ~ 30Mbauds
FEC Demodulation:1/2, 2/3,3/4,5/6,7/81/2, 3/5, 2/3, 3/4,
4/5,5/6,8/9, 9/10

Signal Strength:  -65 ~ -25dBm
Stream in: 2 Tuner input
Stream out: 1ASI output 2 IP output over UDP protocol, 1000M Base-T
Support Diseqc function

Multiplexing
Maximum PID Remapping: 256 input
Function:PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically

Descrambling
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; up to 120Mbps (Optional as required)

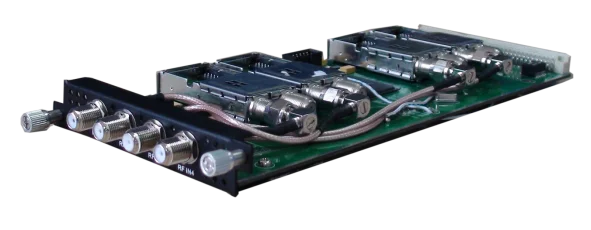

4 FTA Tuner Module (CX904)

     CX904.pngDVB-S2 inputs: 4 Tuner inputs, BNC 75Ω
Standard: DVB-S/S2
 DVB-SDVB-S2
Input Frequency:950-2150MHz950-2150MHz
Symbol Rate:QPSK 2~45MbaudsQPSK 1 - 45Mbauds
8PSK 2 ~ 30Mbauds
16APSK 1~45 Msps
32APSK1~32 Msps
FEC Demodulation:1/2, 2/3,3/4,5/6,7/81/2, 3/5, 2/3, 3/4,
4/5,5/6,8/9, 9/10

Signal Strength:  -65 ~ -25dBm
Support Diseqc function

Multiplexing

Maximum PID Remapping: 256 input
Function:PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically



Environment
Base Unit Parameters
Dimension(W×L×H): 482mm×410mm×44mm
Approx weight: 8kg
Environment: 0 ~ 45℃(work); -20 ~ 80℃(Storage)
Power requirements: AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
Power consumption : 20W
