portable 3G/4G wifi encoder h.264 h.265 encoding for camera and live streaming

FOB Reference Price:Get Latest Price
$299.00 - $399.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
MagicBox HD Bro
Input:
HD MI/HD-SDI
Output:
HTTP/RTSP/RTMP/UDP/HLS
Video codec:
H.264/h.265
Audio codec:
AAC/MP3
Advantage:
Lowest cost , easy-to-use,
rtmp encoder:
encoder iptv
http encoder:
http encoder
hd mi encoder:
h.265 hd mi encoder
udp encoder:
hd mi iptv encoder
iptv encoder:
rtmp streaming encoder
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package, or as per customer's request.
Port
Shanghai
Product Description

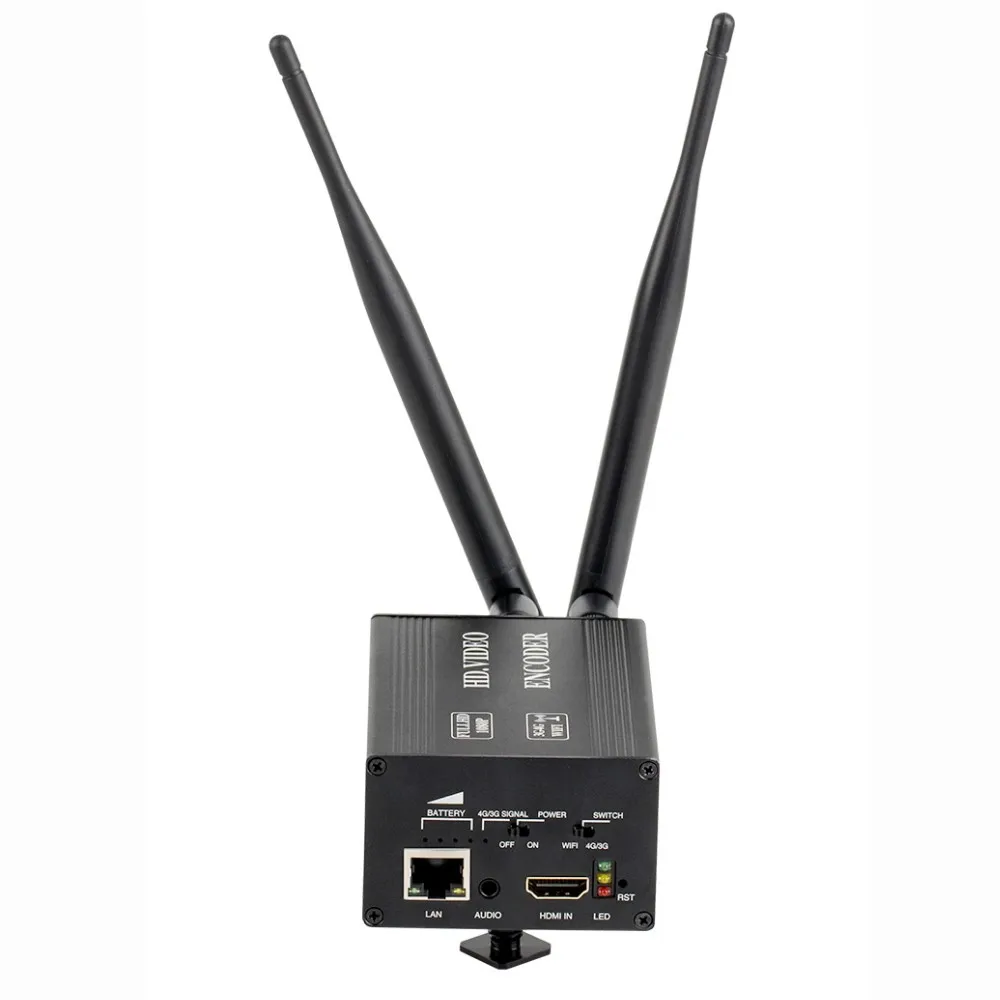

H.265/H.264 MINI Movable HD Encoder
with 3G/4G/WIFI


Magicbox Bro 3G/4G/WIFI + Battery HD HD MI/HD-SDI Encoder is a professional audio and video encoding products, which support 1-channel audio and video capture features high-definition HD MI, 1 3.5MM independent audio interface acquisition, dual streamingH.265/ H.264 encoded output format, audio MP3, AAC formats.


It support IP output with HTTP/RTSP/RTMP/UDP/HLS protocol and transmission, and with external audio input. It doesn't have computer hardware compatibility issues, easy to operation.

Lowest cost and easy-to-use video streaming appliance designed for professional video producers who need to to broadcast high definition video. The encoder is a professional high definition video coding product, with high integration and reasonable price. From any HD MI/HD-SDI input source such as a camera or switcher, it generates an H.264/H.265-encoded stream compliant with RTSP, HTTP, HLS, UDP, RTMP, RTP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

This encoder can deliver H.264/H.265-encoding video streams to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server and some other servers based on HTTP/RTSP/RTP/RTMP/UDP/HLS protocols.

 With MagicBox Bro, it can broadcast To Any Streaming Platform and allows you to stream your live video content to a Wowza server or the platform of your choice at any time..

Key Features
1.Support 3G/4G/WIFI/cable network optional

2.1*HD MI input (HD-SDI option), H.265 latest architecture

3.Battery usage time: 3+ hours

4.H264/H265 encoding format

5.The shoe base is fixed to the camera

6.Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i solutions (customized)

7.Supports WINDOWS and LINUX etc

8.multiple devices display on a computer at the same time

9.Support RTSP/RTP/RTMP/HTTP/HLS/UDP unicast and multicast protocol (RTMP support adding users and changing passwords)

10.Support Main TS stream and the sub TS stream use in different network protocols for transmission

11.Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )

12.Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K

13.Video packaging: A mode: FFMPEG, B mode: VLC

14.Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming

15.Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S


16.Video packaging: A mode: FFMPEG, B mode: VLC

17.Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

18.OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols;Adjustable coordinates: 1920x1080; The font size resolution: 8 to 72.

19.WIFI: 2.4Ghz, 802.11n is compatible with IEEE802.11g, IEEE802.11b, the effective transmission distance: 30m

20.Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

21.Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

22.With build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually

23.Support coding without video signal;

24.Complete the setting effect immediately, don’t need to restart

25.one-key recovery of the default configuration

26.Support set-top box decoder

27.The low power consumption design

28.Battery power supply, can use 5-6 hours

29.WEB management

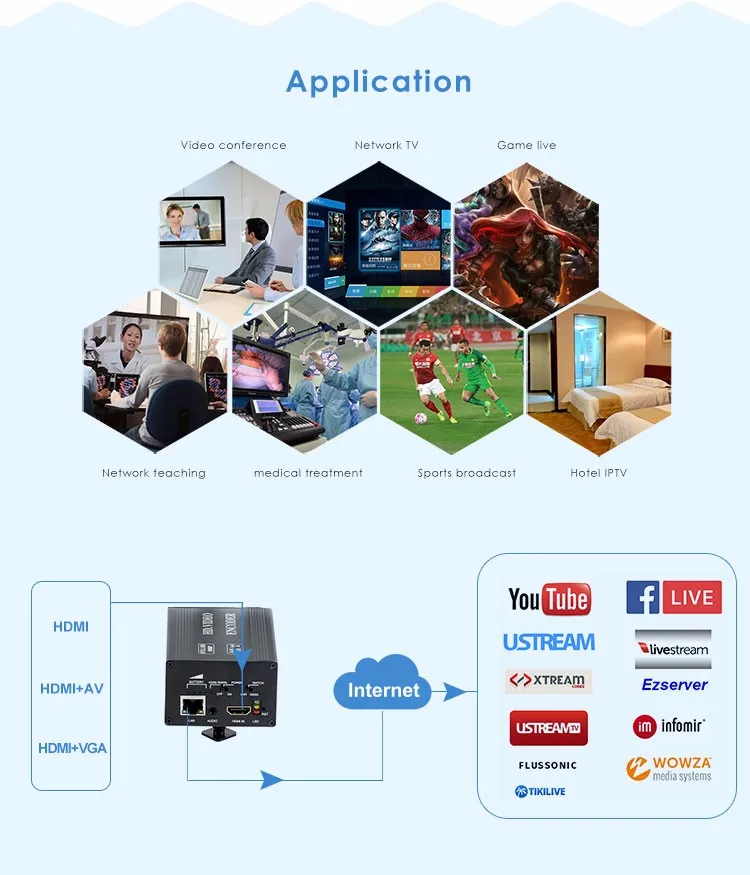

Main Applications

1.network TV IPTV HD encoder

2.Can be accessed NVR for DVR

3.digital signage HD streaming server

4.video conferencing system, video server

5.network conference system video capture

6.instead of HD video capture card

7.Mobile live system

8.Oline classroom system

9.Hotel CATV syste

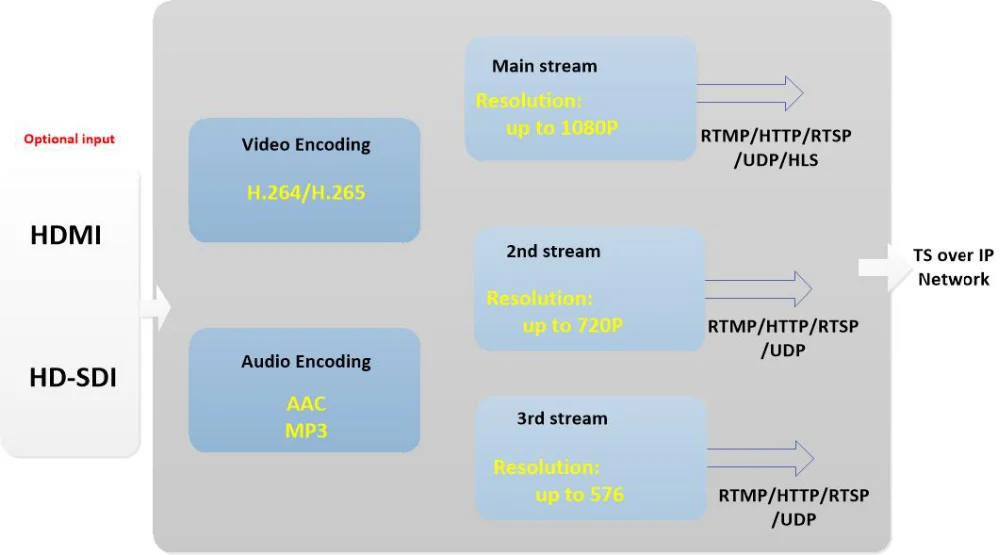

Principle Chart


Specifications
INPUT
Types
1 HD MI input (HD-SDI option);
1 channel 3.5MM channel audio input
OUTPUT
IP output
1 channel IP signal output, 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
Video
Input resolution
1920x1080p
1920x1080i
1280x720p
720*576i
720*576p
640*480i
and other conventional resolution
Coding standard
H.265/H.264
Coding level
H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size
640*360~1920*1080(customization supported)
Video bit rate
Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate
30
OSD
Character, images
Audio
Input selection
1 channel embedded audio HD MI;
1 channel 3.5MM independent audio (audio gain supported)
Audio coding
AAC/MP3
Audio bit rate
64Kb/s~384Kb/s
Sampling rate
32000, 44100, 48000 etc
WIFI
IEEE 802.11 b/g/n client
Embedded high-performance 32-bit RISC microprocessor
Highly with integrated RE with 55nm CMOS technology
1T1R mode with support of 150Mbps PHY rate
Integrated high efficiency switching regulator
Best-in-class power consumption performance
Compact 5mm x 5mm QFN40L package
1/2/3/4- wire PTA WIFI/Blue-tooth coexistence support
802.11 d/h/k compliant
Security support for WFA WPA/WPA2 personal, WPS2.0 WAPI
Support 802.11w protected managed frames
Qos support of WFA WMM, WMM PS
Support WIFI Direct
Fully compliance with USB v2.0 High-speed mode
Per packet transmit power control
Antenna diversity
Auto-calibration
System
Network protocol
Supports HTTP, RTSP, RTMP, HLS, UDP, Multicast, Unicast
Configuration management
Support IE configuration, remote upgrade
Environment
Power Supply
12V~2A
Power consumption
5W
Operation temperature
-20℃+ 60℃
Working humidity
<90%, Non-condensing
Dimensions
103mm (L)* 70mm(W) * 25mm(H)
Weight
0.4KG
Our Company

With years of export experience along with best quality, advanced technology and excellent service, Dibdvb Technology has won numerous customers' trust and support all over the world.

We are mainly engaged in Broadcast tv and iptv business which includes the following several kinds:


1. Carrier grade broadcast cable tv equipments: Broadcast Encoder and Transcoder, Professional IRD, Mux and Scrambler, Modulator, Transmitter and Set top box
2. Carrier/Economy grade multiscreen iptv encoder/transcoder
3. Digital Video Modulator with HD MI/CVBS inputs, DVB-C/T/ISDB-T/ATSC modulator in 1RU/Compact Chassis
4. Broadcast DVB-C/T2/MMDS solutions
5. Carrier grade iptv solutions
6. Hotel tv systems base on ALL-IP or ALL-RF solution
7. Docsis3.0 CMTS Over Coaxial Cable to Internet
8. OLT and ONU GEPON


Certifications
Packing & Delivery
FAQ

1. Terms of Payment: TT, Paypal, Western Union, AliPay

2. Terms of Delivery: Air Express as DHL, FedEx, TNT, UPS, EMS, for details, please contact sales manager

3. Terms of Warranty: 5 Years and 24/7 hours online technical support

4. OEM ability: Yes. Customization details is depending on customer requirements.

5. Lead time: Generally 5 working days, for special orders, please contact sales manager for confirmation
