Professional America dvb-c set top box with Annex A/b/c, aac/ac3 audio decoding

FOB Reference Price:Get Latest Price
$20.00 - $40.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
STB220-SH/BH
Tuner:
DVB-C
main chip:
HI3716, 600Mhz
Flash Memory:
128M
OSD:
Supported Language: English, Chinese
Video decoder:
H.264 MPEG-1/2/4 Decoder
Audio:
Wma, mp3, wav, aac, ogg
aspect mode:
16:9/4:3LB/4:3PS
Display Resolution:
480i, 480p, 370i, 370p, 720i, 720p, 1080i, 1080p
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package
Port
Shanghai
Product Description

DVB-C HD SET TOP BOX

Sales Contact
Sophie Chen
Email
sophie at dibdvb.com
Skype
dibdvb08
Whatsapp
+86 13429126900+86 13429126900
Telephone
+86 571 89714545+86 571 89714545
Specifications
Chip & Board
Main Chip
HI3716, 600Mhz
Flash Memory
128M
SDRAM
DDRIIII 128M*16bit*1pcs@1066MHz
Tuner Number
M88TC2800
Tuner Type
Silicon
Front Panel
LED
Power Indicator (LED): (Standby, Lock) / show channel number and etc.
Key
5PCS (Standby/Ch-/CH+/VOL-/VOL+)

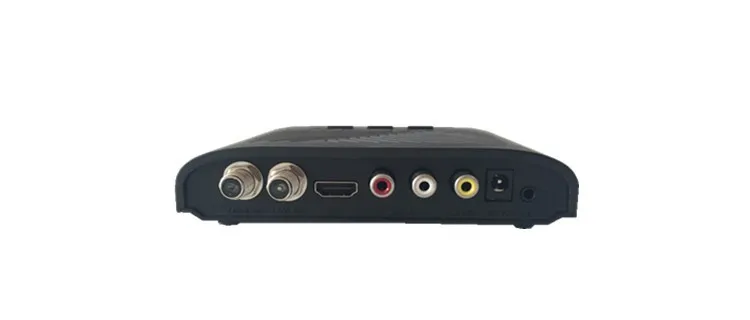

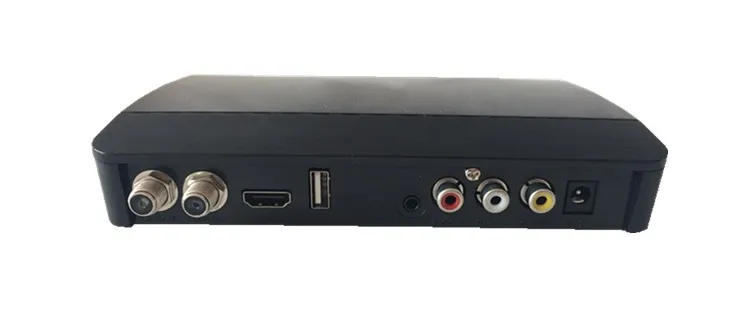

Rear Panel
USB
1
Tuner RF input
connector
IEC Female x1
Tuner RF Loop
through connector
IEC Male x1
CVBS
1
YPbPr
1
HD MI Output
1
Basic User Interface Features (common features)
OSD
Supported Language
English, Chinese
Subtitle
English, Chinese
TV System
Display Mode
1080P, 1080I, 720P, 480P, 480I
Aspect Mode
16:9/4:3LB/4:3PS
Video
Decoder
MPEG-1/2/4 Video Decoder
H.264 Decoder
Display Resolution
480i, 480p, 370i, 370p, 720i, 720p, 1080i, 1080p
Aspect ratio
16:9 wide screen, 4:3 letter box, 4:3 pan scan
Video output standard
Output Scope :1.0±0.05V Vp-p
Video Formats
PAL, NTSC, SECAM (Optional)
Supported Videos
avi, mpg, dat, vob, div, mov, mkv, rmvb, wmv, flv, ts
Audio
Supported Audio
Wma, mp3, wav, aac, ogg
Supported Picture
JPG, PNG, BMP, motion JPG
Input& Output
Input impedance
75Ω
Signals level
33-105 dBmv
Input Frequency
50MHz-858MHz
Decoding
16, 32 , 64 , 128 , 256 QAM
Support scope
0.45-7.0Mb/s
Power Supply
Power input voltage
DC5V, 2.0A
Power Consumption
10W max
Operation Temperature
0°C~45°C
Standby Consumption
<1W
FAQ

1. Terms of Payment: TT, Paypal, Western Union, AliPay

2. Terms of Delivery: Air Express as DHL, FedEx, TNT, UPS, EMS, for details, please contact sales manager

3. Terms of Warranty: 5 Years and 24/7 hours online technical support

4. OEM ability: Yes. Customization details is depending on customer requirements.

5. Lead time: Generally 5 working days, for special orders, please contact sales manager for confirmation
