New IRD1218 Plus 8 rf tuners dvb s2 iptv gateway supporting up to digital 16apsk receiver 32apsk

FOB Reference Price:Get Latest Price
$500.00 - $999.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
IRD1218plus
RF input:
DVB-S/S2 (QPSK, 8/16/32APSK)
Type:
Free to Air
Output:
IP/ASI
Stream number:
244 SPTS or 16MPTS
Data Protocol:
UDP/RTP,Multicast/Unicast
Application 1:
IPTV Headend Systems
Application 2:
DVB Headend Systems
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Device: 460 (L)X483(W)X 44mm(H)
Carton: 6200 (L)X540(W)X 140mm(H)
Packing: 1 pc per carton, G.W: 7.5Kg
Customized packing according to customer's needs.
Port
Shanghai
Lead Time :
Shipped in 5 days after payment
Product Description

IRD1218Plus provides a best-of-class and Highest Speed gateway platform for Cable and IPTV operators. It is a high density digital TV Head end for contribution of digital TV via IP Networks and end to end IPTV solutions, like multi-screen OTT/IPTV transcoding or edge modulation or Transmission. The platform provides the following processing functions: 8 RF Demoduation, DVB-IP Gateway, BISS Descrambling, Remultiplexing, Scrambling, PSI/SI-Processing, user-defined PID passthrough, Distribute Audios and Videos to IP either 240 SPTS for IPTV streaming or 14 MPTS IP and 2 separate ASI for Digital TV platform.

IRD1218Plus is a state-of-the-art satellite demodulator optimized for the reception of high speed IP applications over satellite in full compliance with the DVB-S2 standard. In order to achieve speeds up to 160 Mbit/s, only the fastest and most bandwidth efficient encapsulation, Not only have QPSK/8PSK,But The more important modulation 16APSK and 32APSK are supported.

IRD1218Plus working performance and MTBF(Mean Time Between Failure) is Comparable to famous foreign brands, which both hardware and software optimization and tuner material is according to the most rigorous testing requirements of production. At present, hundreds of overseas operators, customers and large partners recommend DIBSYS receivers and world famous brand equipment to operate in IPTV and Cable TV systems for a long time. In order to improve the product function and help customers to meet the fully applicable needs of the products, DIBSYS will acknowledge product usage and recommendations to all customers from time to time.

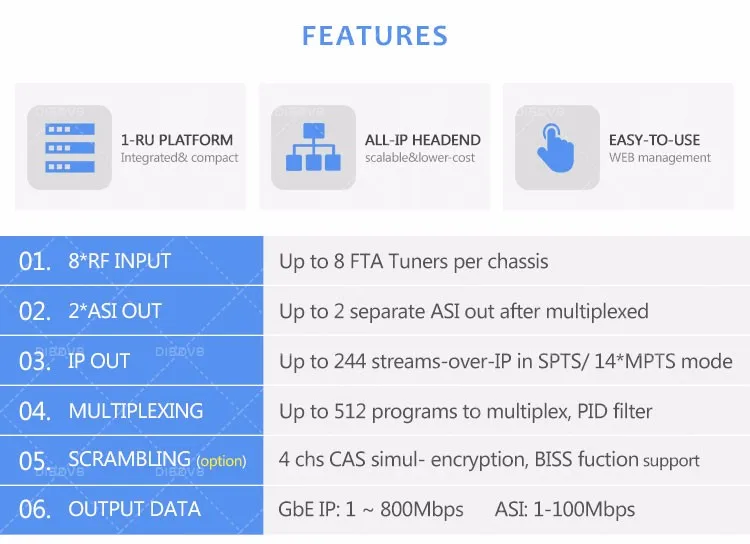

Features

●8 *FTA and BISS DVB-S/S2 Tuners Input per 1RU chassis

●QPSK,8PSK,16APSK and 32APSK, Up to 160Mbps per Satellite TP

●Lower operational costs thanks to highest bandwidth efficiency and lowest IP encapsulation overhead

●High density, high quality, high performance, high flexibility

●5 years Warranty

●Reboot in Web-GUI

●IP Mode:SPTS and MPTS

●SPTS mode:Up to 244 streams-over-IP; MPTS mode:14 MPTS IP and 2 separate DVB-ASI

●Up to 2 separate ASI out after multiplexed

●Processing for SPTS/MPTS multiplexing

●Select three output modes:Tuner Passthrough; Mux without Null-pkt; Mux with Null-Pkt


●MPEG-2 TS over UDP, RTP IP out

●PID filter, Re-Map, Pasthrough with User-Defined PID Value and any Index of In/Out TS

●EPG EIT Table passthrough

●Flexible configuration Service ID,Program Name

●PAT, CAT, SDT, NIT, TDT, TOT PSI/SI generation automatic

●Received signal strength(dBuv), C/N(dB) real time monitoring

● Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

●Support Get Brownser UTC Time and Selectable Time Zone

●Management via WEB and local front panel

●Easy-to-Use System Management

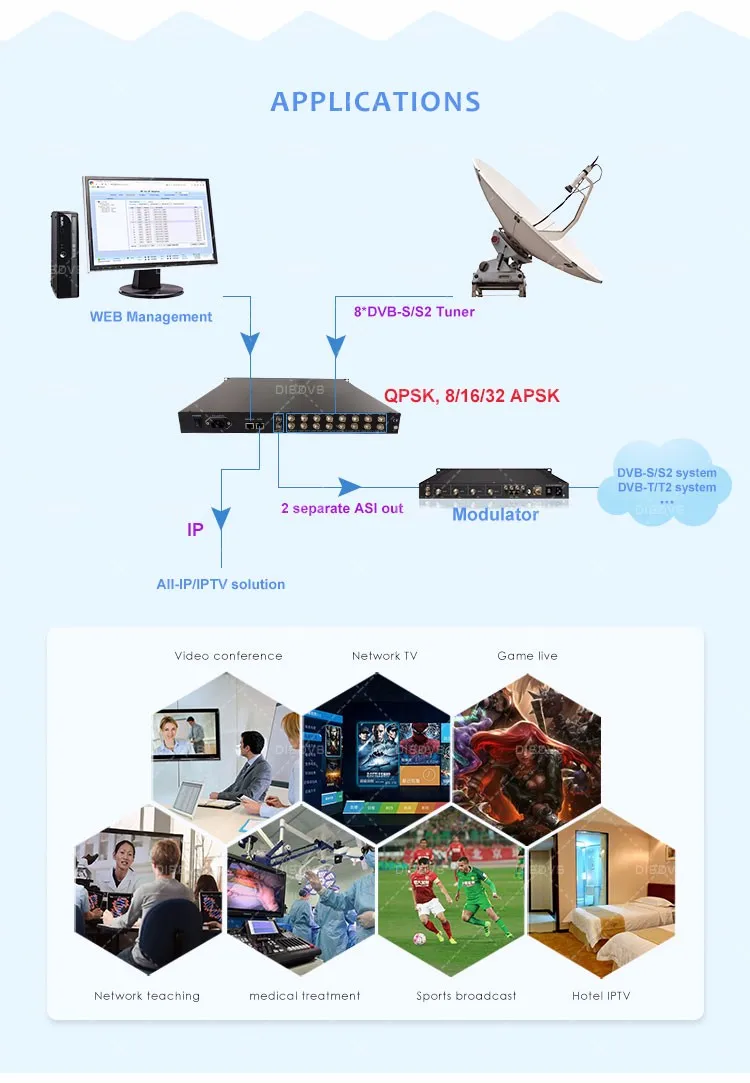

Main Application

●Digital TV via IP networks

●Convert satellite, Cable BISS/FTA channels into next equipment via IP and DVB-ASI port

●Corporate and Government networks

●Deliver FTA channels to transcoding of IPTV solution

Specifications
Tuner input
Number of RF ports
8 Ports RF inputs /Loop Out
Connector
F-female, 75 ohm
DVB-S/S2 Mode
Input Frequency
950-2150Mhz
Symbol rate
2~45Mbauds (DVB-S QPSK)
1~45Mbauds (DVB-S2 QPSK)
2~30Mbauds(DVB-S2 8PSK/16APSK/32APSK)
Signal Strength
- 65 ~ -25dBm
Convolution encoding Rates
DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10
DVB-S2 8PSK:3/5, 2/3, 3/4, 5/6, 8/9, 9/10
DVB-S2 16APSK: 2/3,3/4,4/5,5/6,8/9,9/10
DVB-S2 32APSK: 3/4,4/5,5/6,8/9,9/10
Roll Off
0.35(QPSK);
0.35, 0.25, 0.2 ( 8PSK/16/32APSK)
Demodulation Mode
QPSK, 8PSK/16APSK/32APSK(Only DVB-S2)
LNB Polarity Selection
horizontal, Vertical
LNB Band Selection Tone
0/22KHz selectable
Specturm Inverse
Auto, On, Off
DVB-C Mode
Input Frequency Range
30 ~ 1000MHz
Input Level
51~75dBμV
Symbol Rate
1~7MBaud
QAM Encoding
ITU-T J.83 Annex A(DVB), Annex B, Annex C
Constellation
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Bandwidth
6MHz, 7MHz, 8MHz
ISDB-T Mode
Input frequency range
30 ~ 900MHz
Bandwidth
6MHz
Constellation
DQPSK, QPSK, 16QAM, 64QAM
Interleave
0, 4, 8, 16
Guard Interval
1/32, 1/16, 1/8, 1/4
Transmission Mode
2K, 4K, 8K (FFT)
FEC (Code Rate)
1/2, 2/3, 3/4, 5/6, 7/8
ATSC RF Mode
Compliant with ATSC A/53 standard
Input frequency range
30 ~ 900MHz
Bandwidth
6MHz
Constellation
8VSB
Streams Output
BISS descrambling
BISS-1 and BISS-E
DVB-ASI
2x independent ASI, BNC, 75Ω
Comply to EN50083-9
188 bytes per packet
Max.Bitrate ≤100Mbps
MPEG-2 OVER IP
1 Port 100/1000M base-T, Full Duplex
Max.Bitrate ≤800Mbps
UDP/RTP, Multicast/Unicast
Flexible switching either MPTS or SPTS Mode
Max.Streams16 MPTS(DVB), 244 SPTS(IPTV)
7x188 bytes per UDP packet
Multiplexing
PSI/SI table
PAT, PMT, NIT, TOT, TDT, BAT enable/disable
Input/Output Charset
LATIN, GB2312, UTF-8
Max.Programs
Up to 512 programs to multiplex, 64 service id per one MPTS out
Editable information
PAT/SDT/CAT/NIT/TOTTDT Interval(ms), Service ID; Program number
Management
100M Base-T Ethernet, RJ45
Web Browner IE 8.0 or above
6 Keys
Up, Down, Left, Right, Enter, Esc
2 lines 20char LCD
Status, Alarms LED
Time Zone
UTC+13:00 - -13:00
Software-Reboot
Environment
Rated Voltage
AC 85-260V  50/60Hz
Rated power
35W
Operating temperature
 -10 ~ 50°C
Storage temperature
-10 ~ 75°C
Dimensions
460mm (L) *483mm (W) *44mm (H)
Weight
5.7Kg
