8 channels HD SDI To IP streaming encoder with MPEG-4 H.264 AAC encoding for multiscreen IPTV platform

FOB Reference Price:Get Latest Price
$800.00 - $1,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
MagicBox HD308 Plus
Input:
8 x HD MI, HD MI/AV/VGA, SDI
Output:
IP
Video encoding:
H.264
Audio encoding:
AAC, MP3, LC AAC, HE AAC
Protocol:
RTMP, RTSP, HTTP, UDP, HLS
OSD insertion:
Supported
Management:
Web
Application:
education, health care, IPTV, news interview, banking, transportation
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package, or as per customer's request.
Port
Shanghai
Lead Time :
Shipped in 5 days after payment
Product Description

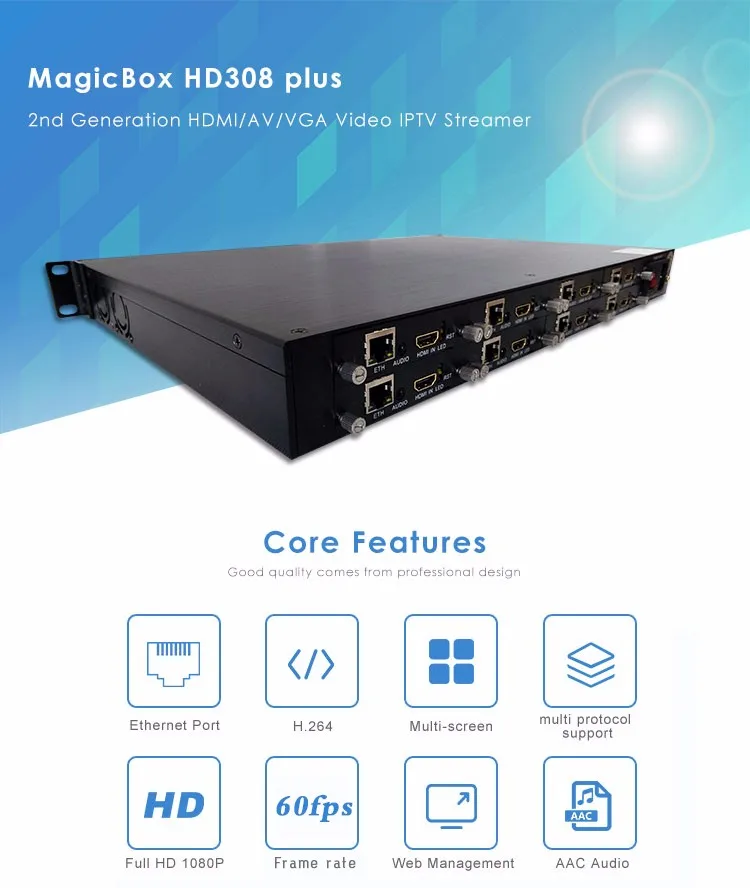

2nd Generation HD MI/AV/VGA Video IPTV Streamer

Lowest cost and easy-to-use video streaming appliance designed for professional video producers who need to to broadcast high definition video. The encoder is a professional high and standard definition video coding product. The product has the function of supporting 1/8/16 channels HD MI video capture, generate dual stream of H.264 encoding output and the AAC audio format. The product has high integration and reasonable price. From any HD MI input source such as a camera or switcher, generates an H.264-encoded stream compliant with RTSP, HTTP, UDP, RTMP and HLS (option) protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

This series can deliver H.264-encoding video streams to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server and some other servers based on UDP/RTSP/RTMP/HTTP/HLS protocols.

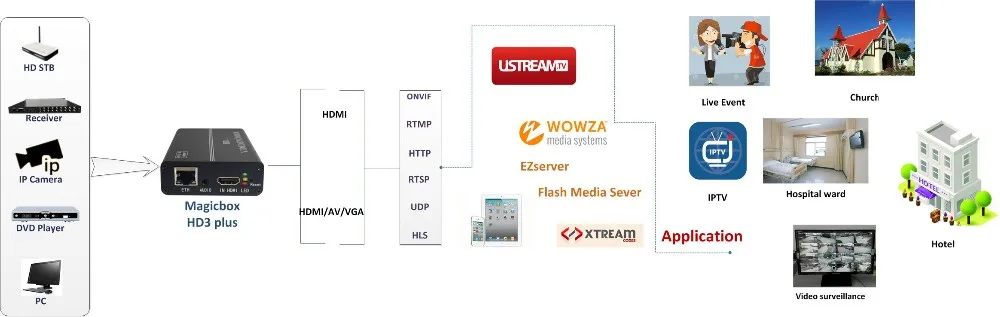

With MagicBox HD3 plus series, it can broadcast To Any Streaming Platform and allows you to stream your live video content to a Wowza server or the platform of your choice at any time.

Key Features
1. HD MI, HD MI/AV/VGA/HD-SDI Inputs per module

2. 16 channels ( in 2 RU), this model can support dual power supply input

3. Two Protocol, Bitrate, Resolution, Profile per HD MI Source Inputs

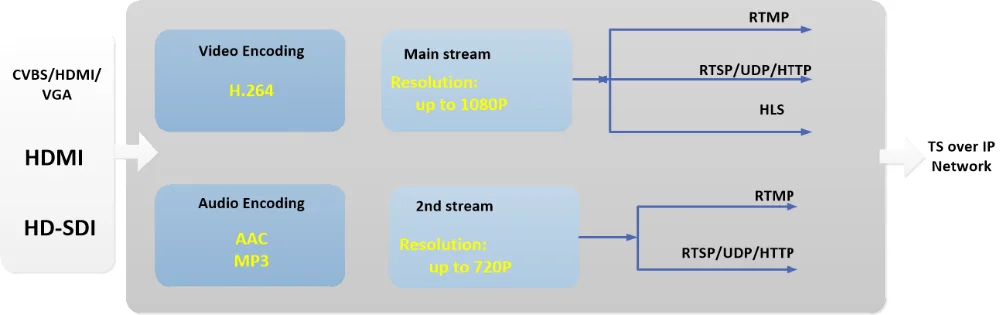

4. Dual streams out, Each HD MI input source simultaneously support one channel up to 1920x1080p Full HD and one channel 1280x720 HD output

5. Each channel stream can simultaneously support any one among the UDP/RTSP/HTTP protocol, including RTMP protocol output


6. Support the standard flow driven architecture of Microsoft (the WDM architecture), Support the WMENCODE of Microsoft.

7. Be compatible with Windows VFW software architecture and WDM pattern

8. Support simultaneous display of one computer and multiple devices

9. H.264 High/Main/Baseline Profile, AAC audio


10. Video bit rates: 16-12000kbps

11. Audio bitrate: 48-256kbps

12. Audio gain: -20db~10db

13. HD-to-SD downscale conversion

14. Superior video quality at ultra-low bitrates, generally video bitrate advised SD about 680kbps, 720p about 1mbps,1080p about 3mbps for lowest bitrate

15. Support CBR and VBR mode

16. PMT ID and Transport ID meet the DVB standards

17. WEB Management

18. Easy-to-Use System Management

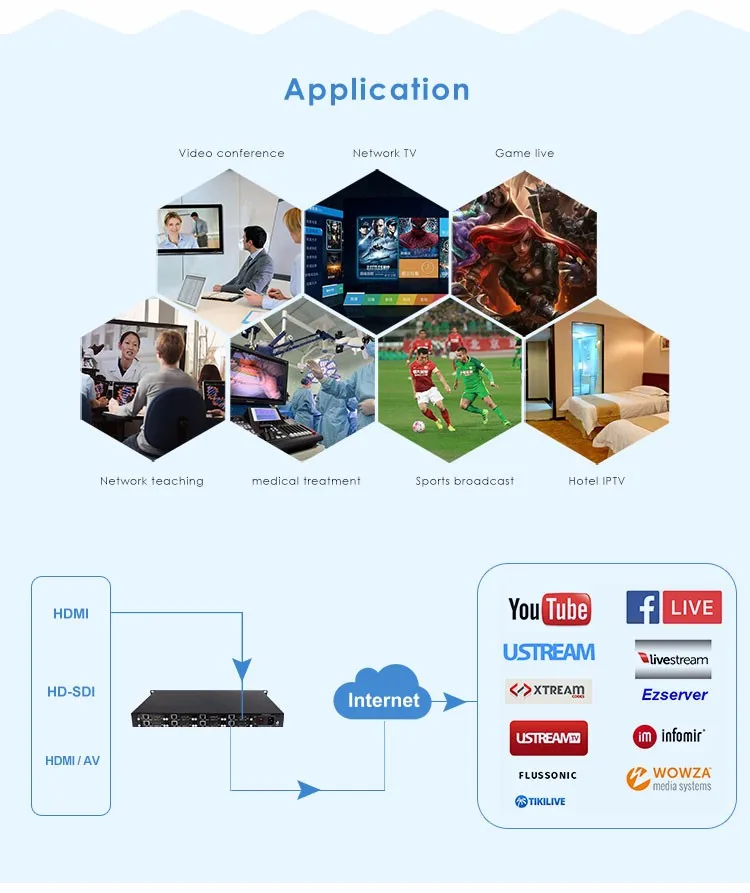

Application


Specifications
Video Inputs
1*HD MI or HD MI/AV/VGA or HD-SDI
per module ( support HDCP protected )
1/8/16 channels optional
Audio Inputs
Processes first two channels of audio embedded in HD MI input signal
Unbalanced analog stereo input via 1/8” (3.5mm) jack(option)
Outputs
IP Output type
RJ45 providing 10/1000Base-T Ethernet with Static or DHCP addressing
Protocol
RTMP, RTSP, HTTP, UDP, HLS(option)
Multi-cast (number of clients may vary from 3 to 10)
Multi-Screen
Up to 2 channels High def. and any resolution of streams simultaneously out per HD Source input
Frame rate
@30/60 fps
Users Interface
Computer
Based control
HTTP via standard PC or web browser using Command Center. The simple Control API and SDK is also available to programmers to create their own application
Pre-processing
Image setting
Video adjustments (Brightness, contrast, Saturation, Hue)
Frame rate
from 5fps to 60fps
Image insertion
OSD insertion
Enhancement filter
Deinterlacing; Noise reduction; Sharpening; Visual Optimizing; Filtering
H.264/MPEG-4 Part 10 (AVC) Video Encoding
Bitrate mode
VBR, CBR
HD MI
First stream
1920*1080, 1280*720, 1024*576, 850*480, 720*576
704*576, 640*480, 640*360, auto
Second Stream
1280*720, 800*450, 720*576, 720*408, 704*576,640*480, 640*360, 352*288, 320*240, 320*180, auto
AV
First stream
1024*576, 850*480, 720*576, 704*576, 640*480, 640*360, auto
Second Stream
720*408, 704*576,640*480, 640*360, 352*288, 320*240, 320*180, auto
Encode
Frame Rates
Encode frame rates representing 1:1, ½ and ¼ of the input frames rates are supported
Encoding Profiles
H.264 Main Profile/High Profile/Baseline Profile
Video Bitrate
16kbps to 12Mbps
Encoding Controls
1.2, 2.0, 3.0, 4.0, 5.0 Level
Support Variable bit rate
Support Average max/min data rate controls
Deblocking Filter
Key Interval
5-200
Audio Encoding
Audio encoding
AAC, MP3, LC AAC, HE AAC
Bit Rates
Range from 48 kbps to 256 kbps
Resample Rate
32Khz, 44.1Khz
Audio Channel
L+R, L, R
Control
1000M Base T Ethernet, RJ45,auto-negotiation
Management via Web
Language
Environment
Power Supply
+12V(Compact size), 220V(2RU), 220V(2RU)
Power consumption
28W
Operation temperature
0 -50°C (32 -122°F)
Storage temperature
-40-70°C (-40-158°F)

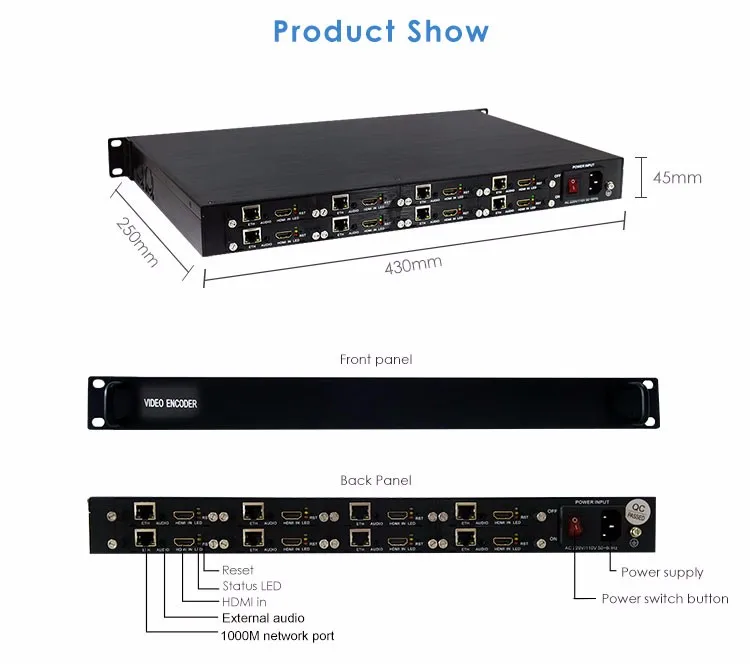

Dimensions
150*120*40 mm(Compact)
430mm x 250mm x 45mm (1RU)
360mm x 485mm x 98mm (2RU)
Weight
1.0kg (Compact); 4.0kg (1RU); 7.5kg (2RU)
Ordering Information
1 channel input --- Magicbox HD301 Plus
8 channels inputs --- Magicbox HD308 Plus
16 channels inputs --- Magicbox HD316 Plus
Our Company

With years of export experience along with best quality, advanced technology and excellent service, Dibdvb Technology has won numerous customers' trust and support all over the world.

We are mainly engaged in Broadcast tv and iptv business which includes the following several kinds:


1. Carrier grade broadcast cable tv equipments: Broadcast Encoder and Transcoder, Professional IRD, Mux and Scrambler, Modulator, Transmitter and Set top box
2. Carrier/Economy grade multiscreen iptv encoder/transcoder
3. Digital Video Modulator with HD MI/CVBS inputs, DVB-C/T/ISDB-T/ATSC modulator in 1RU/Compact Chassis
4. Broadcast DVB-C/T2/MMDS solutions
5. Carrier grade iptv solutions
6. Hotel tv systems base on ALL-IP or ALL-RF solution
7. Docsis3.0 CMTS Over Coaxial Cable to Internet
8. OLT and ONU GEPON


Certifications
FAQ

1. Terms of Payment: TT, Paypal, Western Union, AliPay

2. Terms of Delivery: Air Express as DHL, FedEx, TNT, UPS, EMS, for details, please contact sales manager

3. Terms of Warranty: 5 Years and 24/7 hours online technical support

4. OEM ability: Yes. Customization details is depending on customer requirements.

5. Lead time: Generally 5 working days, for special orders, please contact sales manager for confirmation
