H.265 HEVC HTTP UHD 4K Encoder For IPTV/OTT Live Media Server

FOB Reference Price:Get Latest Price
$299.00 - $499.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
Magicbox HD501
Input:
1*4K HD MI (HDCP) input ; 8 ,16 channels optional
Output:
1*IP Output
Protocol:
HTTP/RTSP//RTMP/UDP/ONVIF/HLS
Video encoding:
H.264/H.265
Audio encoding:
AAC MP3
Resolution:
UHD 4K, FullHD, HD, SD
Application:
IPTV Headend Systems
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Customized packing according to customer's needs.
Port
Shanghai
Lead Time :
Shipped in 5 days after payment
Product Description

Magicbox HD5 4K HEVC Encoder opens the next level of video experiences for customers of premium broadcast, cable and satellite, mobile and OTT/IPTV services. Low cost and easy-to-use video streaming appliance designed for professional video producers, the unit employs precision encoding technology originally reserved for professional transmission. The product has the function of supporting 1 or 4 channels 4K HD MI of H.265/H.264 encoding output and the AAC audio format.

Making live UHD delivery available for satellite, cable terrestrial and fiber networks, the Magicbox HD5 encoder content in real time via HEVC H.265, today’s most advanced compression standard. It can deliver H.265/H.264 encoding video streams to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server and some other servers based on UDP/RTSP/RTMP/HTTP/HLS protocols.

Features

◆1 channel 4K HD MI(HDCP) Input, 8, 16 channels optional

◆Two Protocol, Bitrate, Resolution, Profile per HD MI Source Inputs


◆Supports real time 4K@30fps encoding

◆Supports 1080P, 720P, 567P, 480P@60fps encoding and other resolution


◆Support multi protocol output, RTSP, RTP, RTMP, HLS,Onvif, one of HTTP/UDP multicast/UDP unicast protocol out simultaneously


◆Support the standard flow driven architecture of Microsoft , (the WDM architecture)


◆Support the WMENCODE of Microsoft.

◆Supports both HEVC and H.264 – built for the future without losing support for legacy receivers/decoders

◆Be compatible with Windows VFW software architecture and WDM pattern

◆Support simultaneous display of one computer and multiple devices

◆High/Main/Baseline Profile, AAC, MP3 audio


◆Audio bitrate: 24-256kbps

◆HD-to-SD downscale conversion

◆support insert picture LOGO, BMP format.

◆Input Resolution support 3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i equal resolution (adjustable)

◆Video recording function (storage in SD card)


◆Next-generation HEVC / H.265 compression reduces network bandwidth by up to 50% compared to H.264

◆Pristine video quality and motion fluency

◆Superior video quality at ultra-low bitrates

◆Support CBR and VBR mode

◆WEB Management

◆Easy-to-Use System Management

Main Application

▶4K/HEVC digital TV Broadcast

▶Low Bitrate Video and audio compression transmit

▶IPTV, conference, remote education

▶Back haul/Monitoring for Broadcasters

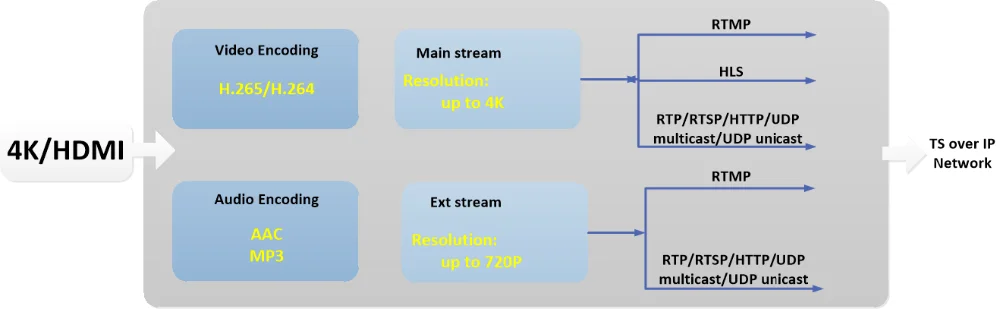

Principle Chart

Specification
Video Inputs
1*4K HD MI (HDCP) input ; 8 ,16 channels optional
Resolution
3840*2160/2048*1152/1920x1080p/1280x720p/720*576i/640*480
frame rate
30~60 Frames per second
1080p @ 60/59.94/50 Frames per second
Audio Inputs
Processes first two channels of audio embedded in HD MI input signal
Unbalanced analog stereo input via 1/8” (3.5mm) jack(option)
OUTPUTS
IP Output type
RJ45 providing 10/100/1000Base-T Ethernet with Static or DHCP addressing;
Protocol
RTMP/RTSP/HTTP/RTP/UDP/HLS     Unicast, Multicast, Onvif
Multi-Screen
Up to 2 channels High def. and any resolution of streams simultaneously out
Users Interface
Computer
Based control
HTTP via standard PC or web browser using Command Center. The simple Control API and SDK is also available to programmers to create their own application
Pre-processing
Frame rate
5~60FPS
Image insertion
OSD insertion(BMP) and Font color change
Package
ffmpeg/VLC
PMT ID
1~65535
Transport ID
256~3840
Stream ID
256~3840
Program ID
customize
SDT name
customize
Buffer Mode
188x7,188x6
smartencode Mode
smooth bitrate/low delay/b frame

Low latency
UDP protocol: ≦500ms
TCP: 1~3S
SDK: ≦100ms
H.265/HEVC Video Encoding
Bitrate mode
VBR, CBR
Key interval
30-180,multiple of 30
first stream
3840*2160/2560*1600, 2560*1440, 2048*1152, 1920*1080, 1680*1056, 1280*720,1024*576,960*540, 850*480, 720*576,720*540,720*480,720*404, auto
Second Stream
1280*720, 960*540, 848*480, 800*450 720*576, 720*540,7200*408, 720*404, 704*576, 640*480, 640*360, 480*270, 384*216,352*288,320*240,320*180,auto
H.265encoding
MPEG-H HEVC (ISO/IEC 23008-2)
Main Profile Level 4.1 (4:2:0 8-bits)
Key Interval
30-180, multiple of 30
Video Bitrate
16kbps to 50Mbps

Fluctuate Level
1.2, 2.0, 3.0, 4.0, 5.0 Level
Support Variable bit rate
Support Average max/min data rate controls
Deblocking Filter
Encode Frame Rates
Encode frame rates representing 1:1, ½ and ¼ of the input frames rates are supported
RTMP
URL/IP mode
RTMP MODE
video+audio/video only/audio only
H.264/MPEG-4 Part 10 (AVC) Video Encoding
Bitrate mode
VBR, CBR
First stream
Fluctuate Level
first stream
3840*2160/2560*1600, 2560*1440, 2048*1152, 1920*1080, 1680*1056, 1280*720,1024*576,960*540, 850*480, 720*576,720*540,720*480,720*404, auto
Second Stream
1280*720, 960*540, 848*480, 800*450 720*576, 720*540,7200*408, 720*404, 704*576, 640*480, 640*360, 480*270, 384*216,352*288,320*240,320*180,auto
H.264 Profile
high/main/baseline
Encode Frame Rates
Encode frame rates representing 1:1, ½ and ¼ of the input frames rates are supported
Encoding Profiles
H.264 Main Profile/High Profile/Baseline Profile
Video Bitrate
16kbps to 50Mbps

Fluctuate Level
1.2, 2.0, 3.0, 4.0, 5.0 Level
Support Variable bit rate
Support Average max/min data rate controls
Deblocking Filter
Key Interval
30-180, multiple of 30
Audio Encoding
Audio input
line in, HD MI audio
Audio encoding
AAC(LC-AAC,HE-AAC), MP3
Bit Rates
  Range from 48 kbps to 256 kbps
Resample Rate
 32Khz, 44.1Khz
Audio Channel
L+R, L, R
Resampling rate
32000/44100
Audio gain
-20/-10/close/5/10dB
RTSP audio encode
AAC/G711
Color Setting
Brightness
[0-100] Default value: 50
Contrast
[0-100] Default value: 50
Hue
[0-100] Default value: 50
Saturation
[0-100] Default value: 50
Noise, Sharpening, Filtering
Record
on/off
Control
Adaptive Base T Ethernet, RJ45, auto-negotiation
Management via Web
Language English/Chinese
Environment
Power Supply
+12V ~2A(Compact size)
Power consumption
 5W
Operation temperature
0 -50°C (32 -122°F)
Storage temperature
-40-70°C (-40-158°F)
Dimensions
110mm x 100mm x 40mm (Compact)
Weight
1.0kg (Compact)

                                                                                                Version updates are subject to change without notice.
