Device: 460 (L)X483(W)X 44mm(H)
Carton: 6200 (L)X540(W)X 140mm(H)
Packing: 1 pc per carton, G.W: 7.5Kg
Customized packing according to customer's needs.
Shipped in 5 days after payment

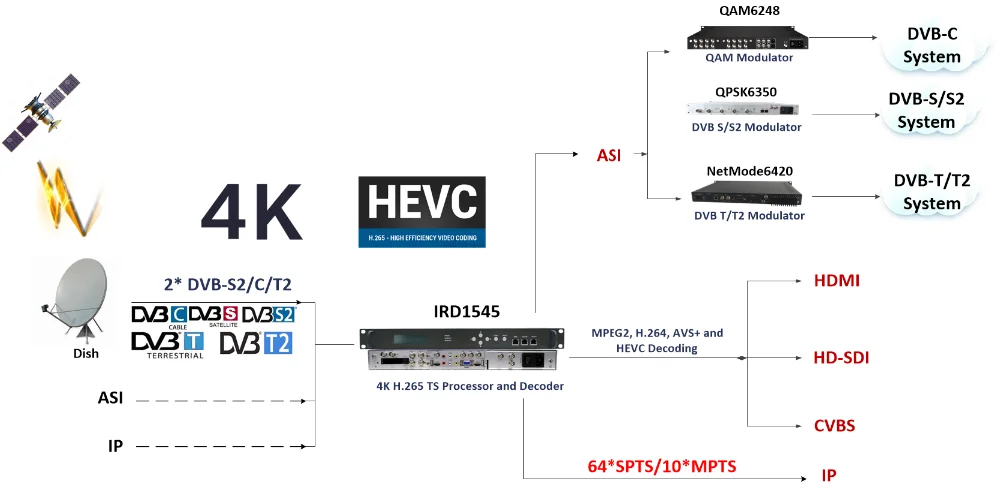

With the significant increase in 4K/UHD TV sets hitting the Head-end market, content providers and TV broadcasters are looking for a solution to address the needs of Collect the UHD H264/H265 Channels from Cable, Terrestrial, Satellite and IPTV, and IRD1545 4K Decoder is the answer. It delivers with superior video quality 2160p@30fps UHD and 1080p@60fps HD. The Decoder is also ideal for Video-over-IP distribution and contribution Transmission.
IRD1545 is a comprehensive modular and professional TS processor/Decoder equipped with 2 independent modulars. One is RF module, and the other one is HD MI/SDI Decoding module. It supports a wide range of application by combining 2 tuners (DVB-S/S2, DVB-T/T2, DVB-C) processing capability with industry standard outputs including ASI and TS/IP. Up to 4 CI slots capable of working with most of well-known CAS in the market to de-crypt multiple pay TV services. The unit also support 10*MPTS/64*SPTS and 2 GbE port (one for backup) IP output.
IRD1545, 2 independent modulars both can be used for Decoding. It feature a broadcast quality decoder of MPEG-2, AVS+, MPEG-4 AVC/H.264, H.265 in both Standard Definition and High Definition formats, and provides a variety of resolution: 4K/2K/1080P/1080I/720P/576I/480I.
1.Superior real-time MPEG2, H.264, AVS+ and HEVC Decoded out in UHD/4K, HD and SD
2.Multiple input: IP/ASI, option DVB-S2/T2/C CI RF inputs
3.2 independent CAM card sets, decrying two different signals

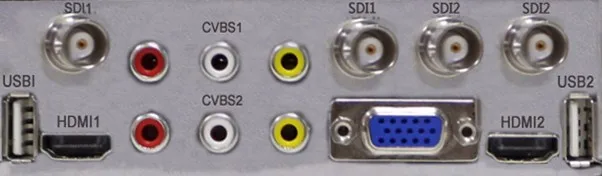

4.HEVC Video out: Up to 4*HD MI In 4k@30fps /4*3G-SDI, HD-SDI in 1080P/1080i(SDI)@60fps and 4*CVBS
5.Audio out: Up to 4*Analog R/L, 4*XLR and 4*AES/EBU
64SPTS/10Mpts over IP out of GbE1 as mirror of GbE2 Ports
Up to 4 UDP/IP inputs
NOTICE: in 4 IP inputs, tuner and CI slot cannot used.
Control & Monitoring
1*RJ-45, 10/100 Base-T, for equipment IP Control
LCD display and keypad
AC 90V～250V, 50/60Hz
24W (Without LNB power supply)
0 ~ 45℃
-10 ~ 60℃
10 ~ 90% non-condensed

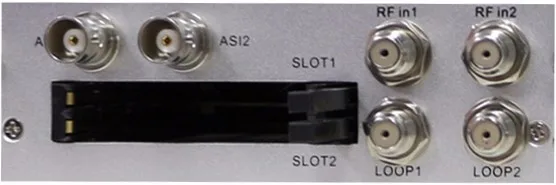

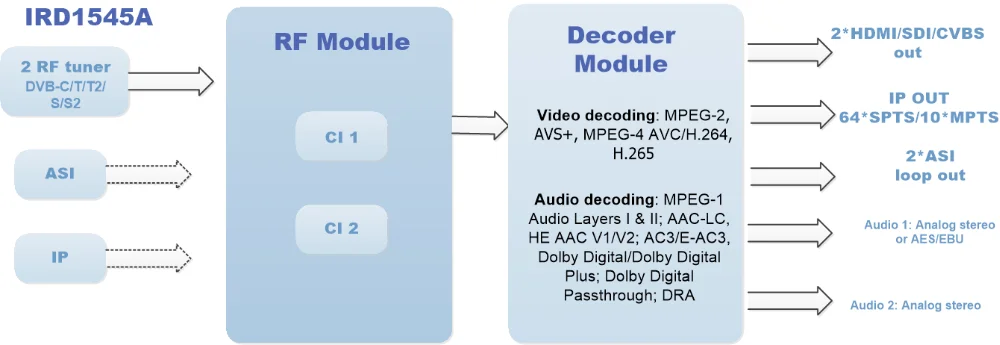

First module: RF Board Second Module: Decode Board

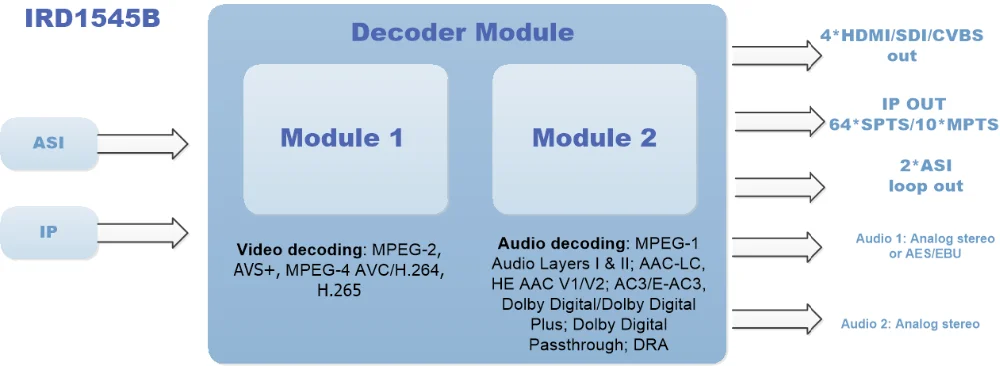

Two Modules: Decode Board
