16 FTA DVB-T/ T2, DVB-S2/S, DVB-C, ATSC or ISDB-T Tuner to IP Gateway

FOB Reference Price:Get Latest Price
  • 1 - 1 Sets
    $1,085.00
  • >=2 Sets
    $950.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
IRD1518 Plus
Input/Output 1:
16 DVB-S/S2 tuners+2 ASI in; 512 SPTS out
Input/Output 2:
16 DVB-S/S2 tuners in; 16 MPTS out
Input Frequency:
950-2150MHz
Constellation:
QPSK, 8PSK
BISS descrambling:
Mode 1, Mode E
Protocol:
UDP and RTP/RTSP
Application 1:
IPTV Headend Systems
Application 2:
DVB Headend Systems
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package
Port
Shanghai
Lead Time :
Shipped in 3 working days after payment
Product Description

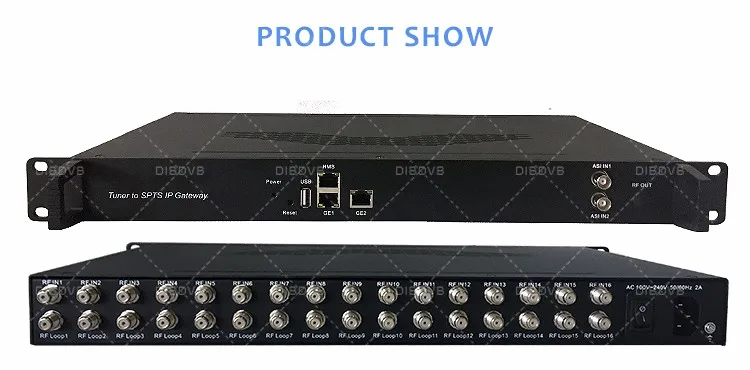

IRD1518 Plus is a high-density, modular and FTA/BISS decryption professional TS processor equipped with 16 independent tuners, which can be either of DVB-T/ T2, DVB-S2/S, DVB-C or ISDB-T types.

IRD1518 Plus DVB-S/S2 Tuner to IP Gateway is a head-end interface conversion device and Routes Any or All Transport Streams via IP Output Port by SPTS/MPTS channels. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package, or directly convert the TS from DVB-ASI, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.

IRD1518 Plus enables an all-IP headend architecture, resulting in a more scalable and lower-cost transition to IP-based services. This is an ideal solution for environments where you have a large number of air Channel, and used largely to Medium-Scale IPTV, Hotel, entertainment facilities, or any kinds of Source signals convert to Cable TV broadcast environments In limited budget severely. Used in some of the most famous ballparks in the world, this is an ideal solution for environments where you have a large number of displays, such as stadiums, entertainment facilities, or broadcast environment. This DVB to IP Gateway is designed especially for high channel density environments where Rapid deployment, Easy management and compatibility are critical.

Main Application

1. Converting the content of 16*FTA satellite transponders to IP streaming

2. Upgrade all your analog Head-ends to digital TV Solution

3. Enterprise, Hotel, campus, hospital, Public Place

4. Huge FTA Channels to collect in Limited budget

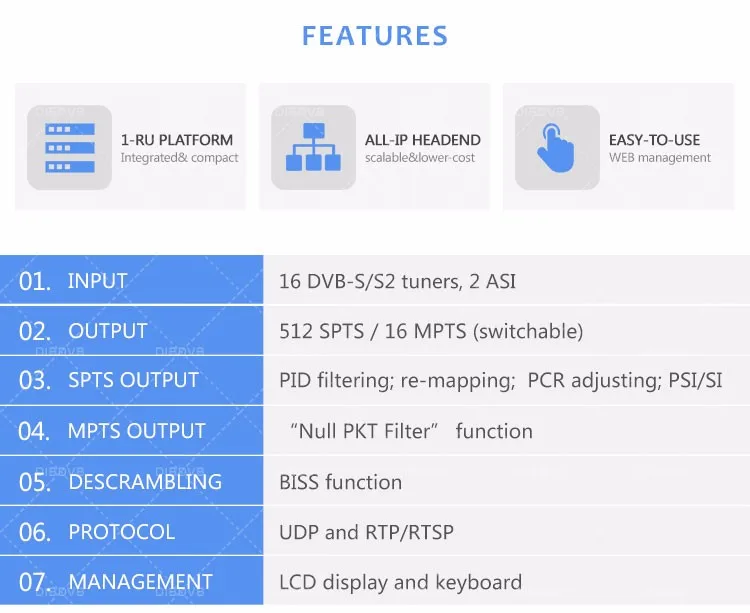

Features

●16*FTA Tuners Input, Supports variety of input options DVB-T2/T/S2/S/C/ISDB-T

●Support DisEqc function

●Each tuner can process all the streams within each of the tuned transponders, and unit can encapsulate 500+ streams of SPTS or 16 streams of MPTS at the same time

●BISS-0, BISS-1 and BISS-E decryption

●IP Output: IP–UDP, RTP/RTSP

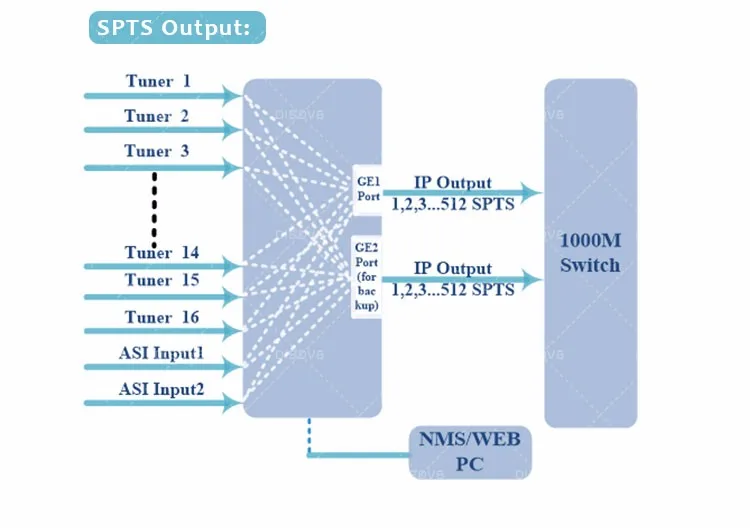

●SPTS Mode enable One MPEG-TS to Distribute Two Separate Multicast streams Output In GbE1, GbE2 Ports

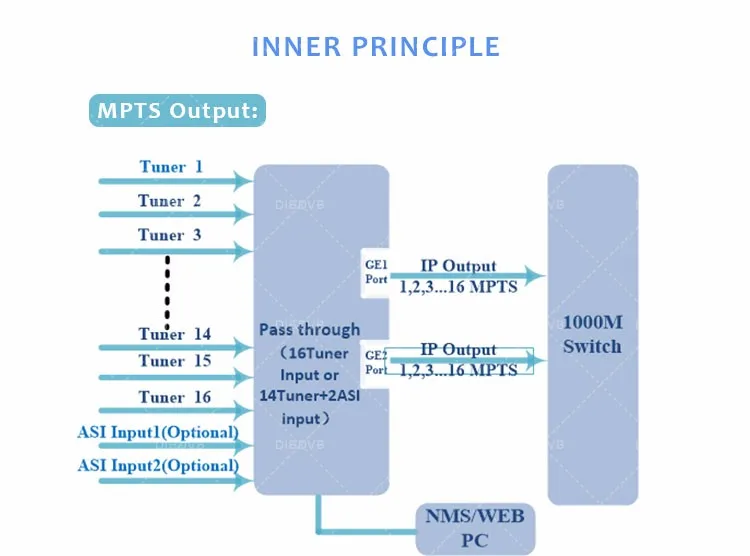

●MPTS Mode enable One MPEG-TS to map One Multicast streams outputs In either GbE1 or GbE2 Port

●SPTS Mode allow PID filtering, re-mapping, PSI/SI to rebuilding and editing

●Easy-to-Use System Management via Web-GUI

●Breakthrough price and Quality

●For professional 24/7 Non stop operation

●High density, compact 1-RU platform saves rack space and reduces operating cost

Specifications
Input Interfaces
16 FTA Tuners In/Loop Out
SelectableDVB-S/s2, DVB-T2,DVB-C, ISDB-T
F-female type Connecter
2 Separate DVB-ASI (Only valid in SPTS)
75 Ω , BNC type, 188Bytes, ≦150Mbps
ASI bitrate 270Mbit/s ±100ppm
Output Level 800mVpp Nominal

DVB-S/S2 Mode
Input Frequency
950-2150MHz

Symbol rate
2~45Mbauds(dvb-s QPSK)
1~45Mbauds(dvb-s2 QPSK)
2~30Mbauds(dvb-s2 8PSK)

Signal Strength
- 65 ~ -25dBm
FEC Demodulation
1/2, 2/3, 3/4, 5/6, 7/8(dvb-s QPSK)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (dvb-s2 QPSK/8PSK)
Roll Off
0.20; 0.25; 0.35(Only DVB-S)
Demodulation Mode
QPSK, 8PSK(Only dvb-s2)
LNB Polarity Selection Vol
0, 13V, 18V Selectable
LNB Band Selection Tone
0/22Khz Selectable
Input Impedance
75 Ω
DVB-T/T2 Mode
Frequency Range
30MHz-1000Mhz
Bandwidth
6Mhz, 7Mhz, 8Mhz
Level
-87 ~ -20dBm
Constellation
QPSK, 16QAM, 64QAM, 256QAM(Only DVB-

T2)
FEC Demodulation
DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval
DVB-T: 1/4, 1/8, 1/16, 1/32
DVB-T2:1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
DVB-C Mode
Input Frequency Range
30 ~ 1000MHz
Input Level
51~75dBμV
Symbol Rate
1~7MBaud
QAM Encoding
ITU-TJ.83 Annex A(DVB), Annex B, AnnexC
Constellation
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Bandwidth
6MHz, 7MHz, 8MHz
ISDB-T Mode
Input frequency range
30 ~ 900MHz
Bandwidth
6MHz
Constellation
DQPSK, QPSK, 16QAM, 64QAM
Interleave
0, 4, 8, 16
Guard Interval
1/32, 1/16, 1/8, 1/4
Transmission Mode
2K, 4K, 8K (FFT)
FEC (Code Rate)
1/2, 2/3, 3/4, 5/6, 7/8
MPEG-TS Processing
IP mode
MPTS, SPTS
Note:When Switch success, Please reboot device by hand
Maximum PID Remapping
180 input per channel
PID remapping by automatically or manually)
PSI/SI(Valid in SPTS)
Program Name, Program Number, Service Type, Service Provider,
PMT/PCR/Video/Audio PID
Note: In MPTS mode.Disable Configuration
Stream output
Dual GbE interfaces, RJ45 Port,Auto-negotiation
GbE1, GbE2, ≦850Mbps Per Port
MPEG-TS Over UDP and RTP/RTSP
7x188 Bytes per TS packet
Multicast/Unicast
MPTS mode
Filter Null Packet
Each IP out Configurable mirroring per Tuner
Numbers of MPTS:Up to 16
Selectable ts out via GbE1 or GbE2 Port
SPTS Mode
TS out via GbE1 as Mirror of GbE2 Port
Configurable two IP address (or port) out from one
Spts Simultaneously
Numbers of SPTS: Up to 512
BISS descrambling
BISS-0,BISS-1 and BISS-E
System function
Web Network management
English language
Ethernet software upgrade
Save/Restore/Facture Set/Backup/Load Setting
Environment
Dimension(W×L×H)
482mm×410mm×44mm
Weight
3.8kg
Temperature
0~45℃(operating); -20~80℃(Storage)
Power Voltage
100 to 120/200 to 240V AC ±10%; 50/60Hz
Power consumption
25W
