high performance 6 channels mpeg2 h.264 av to ip video encoder for iptv streaming server system vod

FOB Reference Price:Get Latest Price
$3,000.00 - $6,000.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 5 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
Caster-T300
Input:
6x Composite, R/L analog audio
Output:
Two GigE IP
Video encoding:
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
Audio encoding:
MPEG-1 Layer II,AAC,AC3,AMR,WM A ,MP3
Procotol:
UDP/RTP/RTSP/HTTP/MMS/FTP/HLS
Application 1:
IPTV Headend Systems
Application 2:
Live Streaming
Application Fields:
OTT
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Carton, or as your request.
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description

Multiscreen IPTV SD Encoder - Caster-T300 6/12/16/18/24 CVBS input

Real-time Codec, Protocol, Bitrate, Resolution, Profile IP-based encoder for multi- screen delivery (TV, Mobile and Web).


6/12/16/18/24 RCA/IPTV Encoder


High capacity to handle up to 24 CHs encoding in 2RU Chassis

Caster-T300 can push /pull an MPEG-2, H.264, MPEG-4 encoding video streams deliver to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, HLS, and some other servers base on UDP/RTSP/RTMP/HTTP/RTP protocols.

Key Features

1. Superior video quality at ultra-low bitrates, generally video advised SD about 500kbps for lowest bitrate
3. SD MPEG/H.264-to- H.264 any to any transcoding
5. HD-to-SD down, SD-to-HD up conversion
7. M3u8 playlist files
9. High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion

11. GbE IP outputs – UDP, RTSP, RTMP, HTTP, HTTP Live Smooth(HLS), FTP
13. Easy-to-Use System Management

2.Up to Six Composite,R/L analog audio or Four SDI per chassis, Configurable for 8 channel out

4.Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, mobile/web, Set top box applications

6.Mulltiple Codec, Protocol, Bitrate, Resolution, Profile per channel

10.AAC, MPEG, MP3 or DD AC-3

12.Integration with content distribution CDNs

14.Selectable any resolution from QSIF to 1080p

15.Web Management

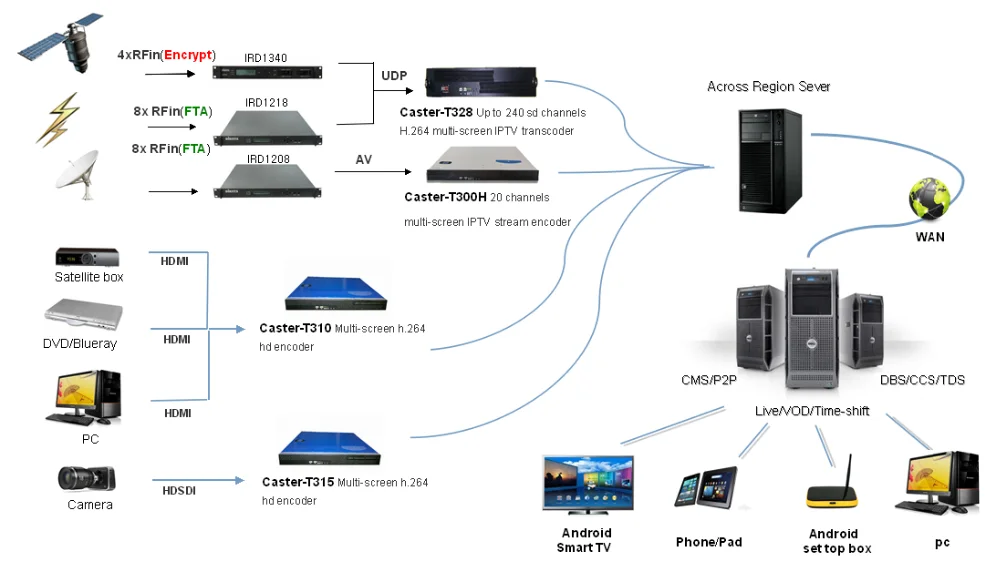

Typical IPTV&OTT Solution

Sales Contact
Sophie Chen
Email
sophie at dibdvb.com
Skype
dibdvb08
Whatsapp
+86 13429126900
Telephone
+86 571 89714545
Specifications
Inputs
Baseband input
6x Composite,R/L analog audio
4x SDI
Outputs
IP Output type
Two Gig Ethernet Ports
ASI output type
Mutliplexed (optional)
Streaming format
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP;
MPEG-1 Layer II,AAC,AC3,AMR,WM A ,MP3
TS Over UDP/RTP/HTTP
3GP Over RTP
FLV Over HTTP/RTMP
HTTP Live streaming
Apple HLS (m3u8)
Mp4

File Output
Encoding
3GPP/3GPP2/WMV/FLV/TS
File output support timing and capacitive record
Pre-processing
Image setting
Video adjustments(Brightness, contrast, Saturation, Hue)
Frame rate
from 2fps to 30fps
Aspect ratio
4:3 and 16:9, WSS control
Image insertion
LOGO insertion
Subtitle Overlay
Static or roll subtitle, up to 3 way (optional)
PID Configuration
Depending on the configuration, it forwards selected programs via IP data casting; PAT, PMT, video PID, audio PID(s) and PCR information are transmitted.
Video Encoding
Bitrate mode
Constant (CBR), Variable (VBR)
Resolutions
80x64 • 176x120 • 128x96 (4:3) • 176x128 • 144x80 • 176x144 • 144x140 • 220x176 • 160x90 (16:9) • 240x176 • 320x240 • 352x288 • 400x300 • 480x360 • 720x576 • 1024x768 • 854x480(16:9) • 1280x720p • 1920x1080p • 1920x1080i
Max channels per RU
Signal Input
H.264 Out
Channels
CVBS/SDI
SD in 1.5Mbps
Up to 8 streams
Up to multiple concurrent outputs per one stream input
Notes: Take those information as reference only, For details contact us.
Video codec
H.263 Profile0, Levels 10,20,30
MPEG-4 SP, Levels 0,0b, 1,2,3
H.264 Baseline Levels 1,1b,2,3;
H.264 Main Profile/High Profile 3.0- 5.1
MPEG-2 MP@ML 4:2:0

GOP Size
I-Frame Time Interval; B-Frame Number; Reference Frame
Video Bitrate
32kbps to 5Mbps
Enhancement filter
Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing
Audio Encoding
Audio encoding
LC-AAC,HE-AAC and HE-AACv2 (including Parametric Stereo)
MPEG-1 Layer, AC3,MP3

Sample Rate
8khz to 48khz
Data Rate
8kbps to 384kbps
Management
Interfaces
LCD display, key button, WEB
Environment
Power Supply
110-240 VAC
Power consumption
50W
Operation Temperature
0 -50°C (32 -122°F)
Storage Temperature
-40-70°C (-40-158°F)
Gross Weight
11kg(24lbs)
Dimensions
483mm (W) x 534mm (L) x 45mm (H)
