16 qam channels cable tv ip qam modulator for low budget solution

FOB Reference Price:Get Latest Price
$1,250.00 - $1,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
IPM6000C
Input:
512*2 IP input, 2 100/1000M Ethernet Port
Output 1:
8 DVB-T RF ourput
Output 2:
16 non-adjacent DVB-C RF output
Protocol:
TS over UDP/RTP/RTSP, unicast and multicast, IGMP V2/V3
Application:
CATV or DTV broadcasting system
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export package
Port
Shanghai
Product Description

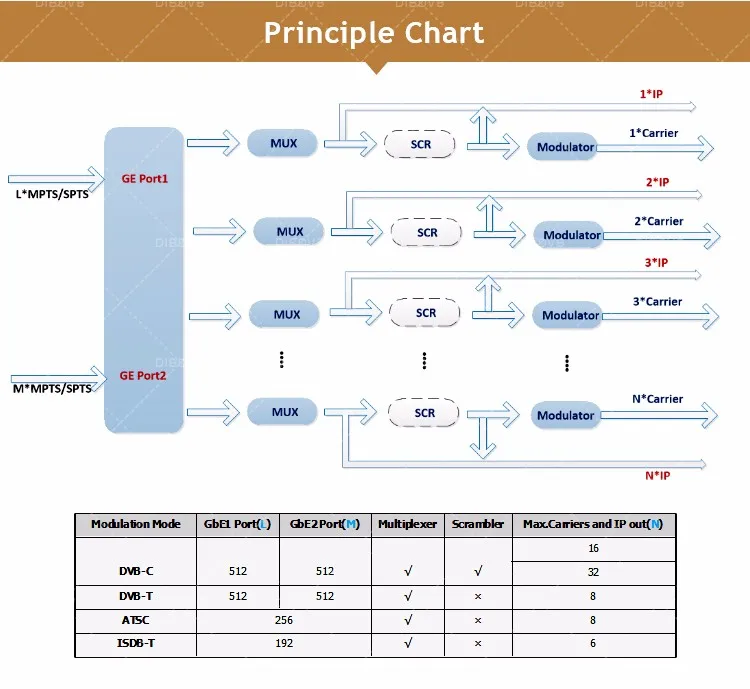

IPM6000 IP to RF Gateway and Modulator is an ideal solution for environments where you have a large number of displays over almost any distance such as Small and Medium Scale of Digital TV broadcasting System, Hotel, stadiums, Campus, entertainment facilities, Education Markets in limited budget. Designed especially for high channel density Distribution Video Engineering project where rapid deployment, compatibility IP source inputs and Multi-Modulated Carrier RF outputs Simultaneously as like Brazil, Japan ISDB-T or United States, Korea ATSC or Europe/Asia/Africa DVB-T and DVB-C and DTMB standard.

IPM6000 Equipped with two IP In/Out data ports reception or streaming of MPEG compliant transport streams over UDP/RTP, each port operates independently and can be configured as either IP in and IP out supporting full 840 Mbit/s TS data rate and up to 1024 MPEG services. The full content of an input port can be mapped transparently and Multiplex to an output modulated Carrier Channel with the option to perform PID filtering or service filtering. The module can be provided with either RJ45 connectors or SFP connectors on the two data ports.

Features

●Selectable RJ45 or SFP interfaces port of 2 GbE IP inputs and modulated carriers RF outputs of ISDB-Tb, DVB-T, ATSC, DTMB ,DVB-C modulation per 1RU Chassis


●Up to 1024 SPTS or MPTS Inputs over GbE Port

●Multi-Channel No-adjacent Carrier RF output as mirror of IP out after Multiplexing or Scrambling

●PID Filtering, Remapping and Passthrough Capabilities with User-Defined PID Value and any Index of In/Out TS

●EPG EIT Table passthrough

●LCN (Logical Channel Number) support

●VCT(Virtual Channel Table) Insertion for ATSC and DVB-C

●Support NIT Table Insertion from Web, PSI/SI Editor and IP source inputs

●Multiplexing and transparent pass-through of two operating modes for each modulated carrier output

●TS Re-multiplexers with PSI/SI regeneration,Editing & inserting and PID processing


PCR correction to accurately correct several PCR of the input data

High density, high quality, high performance, high flexibility

●Excellent RF performance, Gain Level: -20 - +10dBm; Gain offset:10dB; BW:50-960Mhz; MER ≥ 40dB

●Max.Level RF out much higher than the normal standard output level 0dBm, it will reduce the number of amplifier during the long distance transmission of the project. Increase reliability and cut the cost

●Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

●Easy-to-Use System Management via Web

●Diagnostics report, log printing of Kernal and System information

●Cost per Modulated channel - Breakthrough Price !

Main Application

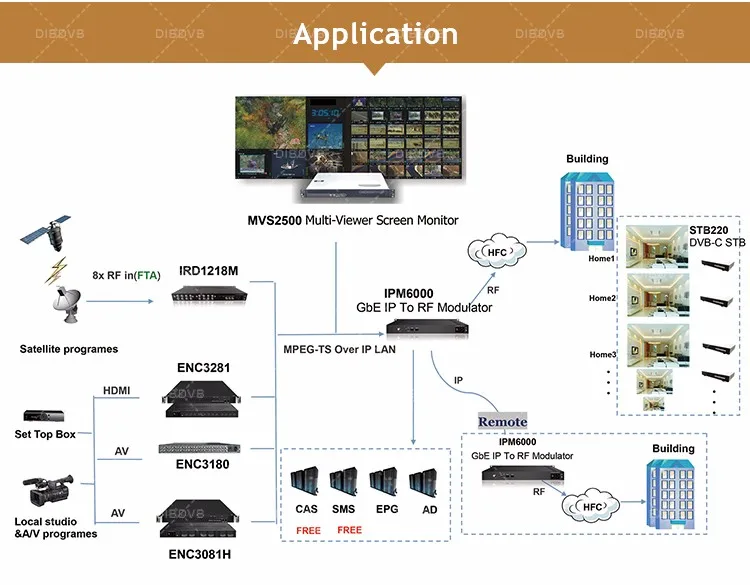

●Distribute IP source to All TVs Over Existing TV Coax

●Advertising, monitoring, training and educating

●Upgrade all your analog Head-ends to digital TV Solution

●Enterprise, Hotel, campus, hospital, Public Place

●Works with Digital TV transmitter in wireless TV broadcasting

●Low cost Digital TV distribution

●DTMB project in Southeast Asian countries

Specifications
IP Interfaces
Types
Two independent Gigabit Ethernet
100/1000Base-T auto-sensing
Connector
Each providing 1000Base-T (twisted pair, RJ-45)or SFP cages
IP Encapsulation
MPEG-TS over UDP/RTP IP
I/O Speed (1Gbe ports)
840 Mbps per port



IP Input
Addressing & Protocols
Unicast, Multicast(IGMP V2/V3)
MPEG Format
188/204 Bytes per TS packet

Maxinumber of services
1024 IP inputs (for DVB-C, DVB-T)
192 IP inputs (for ISDB-T)
256 IP inputs (for ATSC)
Transport stream
Reception of MPTS and SPTS



IP Output
Configuration
Configurable mirroring per Carrier RF channel
TS out
GbE1 or GbE2 Port
Packet Length
1-7
MPEG Format
188 Bytes per TS packet
Null Packet Processing
Filtering & Insertion
Multiplexing
Maximum PID Remapping
180 input per channel
Max.Programs
Up to 512 programs to multiplex
64 service id per one MPTS In/Output
PID remapping by automatically and manually
PSI Insert
PAT, CAT, PMT extraction and generation
SI Insert
SDI, NIT, TOT, BAT, TDT generation
PSIP Insert
VCT (Only for DVB-C, ATSC)
IPTV Sync
Setting Sync period (Only for ISDB-T)
NIT Insert
Web, PSI/SI Editor, Any TS inputs
Operating modes
multiplexing and transparent pass-through
PID Processing
CA Filter, PID Remap, PID passthrough


Program Information
Service Name, Program number LCN(Logic Channel Number)
Service Type,Service Provider
PMT Descriptor Tag, PMT Descriptor Data
PMT, PCR, Video, Audio PID
PCR accurate adjusting
PCR Speed BW, PCR State BW
Source Select
Scrambled TS or Multiplexed TS
Scrambling (Only for DVB-C/DTMB)
Simul-Crypt CAS number
4
Scrambling algorithm
DVB-CSA
Table update
CAT/PMT
ECMG interface
TCP
EMMG interface
TCP/UDP
EMM bandwidth
0~3Mbps/TS
Scramble Standard
ETR289, ETSI 101 197, ETSI 103 197
General RF Modulation
Connector Type
1×F type Female in front panel, 75Ω
MER
≥ 40dB
Output Return Loss
14 dB
RF frequency
50~960MHz, 1KHz step
Output Level
-20~+10dbm (for all carriers), Gain Offset 0-10dB
Modulated Carrier Enable
On/Off
Shoulder Attenuation
55dBc (typical.)
Spectrum Flatness
4dB over full output frequency range
Configure Mode
All Configuration or Each Modulated Carrier
Max.BandWidth
192Mhz, 384Mhz(Only for 32 Carrier DVB-C QAM)
QAM Modulating
Modulation Standard
DVB-C EN300429
Num of QAM Channels
16 or 32 Non-adjacent Carrier
QAM Encoding
ITU-T J.83 Annex A (DVB), Annex B, Annex C
Symbol Rate
5.0~7.0Msps, 1Khz stepping
QAM Constellations
16/32/64/128/256QAM(Annex A)
64/256QAM(Annex B, Annex C)
DVB-T Modulating
Modulation Standard
EN300744
Num of Cofdm Channels
8 Non-adjacent Carrier
FFT mode
2K, 4K, 8K
Bandwidth
6Mhz, 7Mhz, 8Mhz
Constellation
QPSK, 16-QAM, 64-QAM
Guard Interval
1/4, 1/8, 1/16, 1/32
FEC Code
1/2, 2/3, 3/4, 5/6, 7/8
ATSC Modulating
Modulation Standard
ATSC A/53
Num of 8vsb Channels
8 Non-adjacent Carrier
Constellation
8VSB
Bandwidth
6MHz
FEC
RS(208 188)+Trellis
ISDB-Tb Modulating
Modulation Standard
ARIB STD-B31
Num of Carrier Channels
6 Non-adjacent Carrier
Bandwidth
6M
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/32, 1/16, 1/8, 1/4
Transmission Mode
2K, 4K, 8K
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
DTMB Modulating
Modulation Standard
GB20600-2006
Num of Carrier Channels
8 Non-adjacent Carrier
Constellations
4, 16, 32, 64QAM
RF Range
50~900MHz, 1kHz stepping
Output Level
-20dBm~10dBm, 0.5dB
System function
Management Port
Web-GUI, RJ45,100M

Configuration
Save/Restore/Facture Set/Backup/Load Setting
English language
Reset Button
Environment
Dimensions(W×L×H)
420mm*440mm*44.5mm
weight
3.5kg
Temperature
0~45℃(Operation); -20~80℃ (Storage)
Power Voltage
100 to 120/200 to 240V AC ±10%; 50/60Hz
Power Consumption
20 W
Ordering Information
DVB-C modulating
IPM6000C
DVB-T modulating
IPM6000T
ISDB-T modulating
IPM6000I
ATSC modulating
IPM6000A
DTMB modulating
IPM6000M
Related Products
IPM6000C
512×2 IP input, 2 100/1000M Ethernet Port, 16 QAM modulating, DVB-C out
IPM6000T
512×2 IP input, 2 100/1000M Ethernet Port, 8 DVB-T RF out
