Professional IP to ASI multiplexer for MPEG Processing applications

FOB Reference Price:Get Latest Price
$950.00 - $1,499.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
DCM720
Input:
800Mbps GbE IP RJ45
Stream Number:
0~250
Output:
8xASI 100Mbps
TS process:
Multiplexing
Scrambler:
Option up to 4 cas
Application1:
Digital TV Head-end System
Application2:
MPEG processing
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package, or as per customer's request.
carton. Size: 53*46*14cm.
One Set Per Carton
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 5 To be negotiated



 GbE IP to 8x DVB-ASI Multiplexer built-in Scrambler



Product Overview

DCM720 Digital Content Manager (DCM) MPEG Processor is a compact 1RU platform capable of processing a

high number of MPEG video streams. The MPEG Processor is the Second generation of intelligent headend

processing equipment where the combination of compactness and flexibility leads to a cost-effective

solution. Based on our experience, brings operational and economic benefits in MPEG processing applications.

The optional built-in DVB scrambler allows easy integration with several Conditional Access (CA).



DCM720 Professional DCM platform is an ideal solution for multiplexing, scrambling of MPEG streams

which provide a cost effective, versatile and efficient for delivering digital TV content over DVB-ASI that

Integrates up to 250 separate IP address or Ports and De-encapsulates and Routes Any or All Selected

Transport Streams via eight ASI Output Port.



Key Features

Up to 8 channels DVB-ASI per chassis

Up to 250 separate IP Inputs

De-encapsulates and Routes Any or All Selected Transport Streams outputs

Support processing for multiplexing PSI/SI Table

PID filtering,mapping and pass through

Input data rate range: GbE IP:1 ~ 800Mbps

Output DVB-ASI: ≤100Mbps

Auto-generation and manual upload for SI/PSI information

SPTS and MPTS supported

Up to 4 CAS simul-cryption

Transrating of MPEG2/MPEG4 AVC SD and HD

Management via WEB and local front panel

Integrated, compact 1-RU platform saves rack space and reduces operating costs

Low network jitter,low latency,high PCR precision

Easy-to-Use System Management

Real-time monitoring bit rate statistics

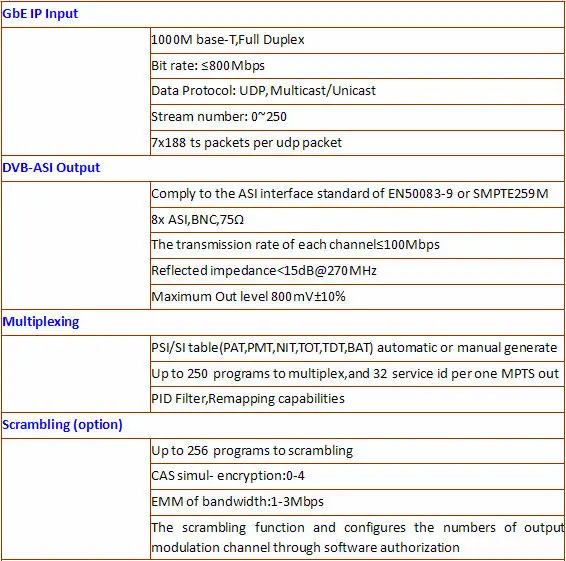

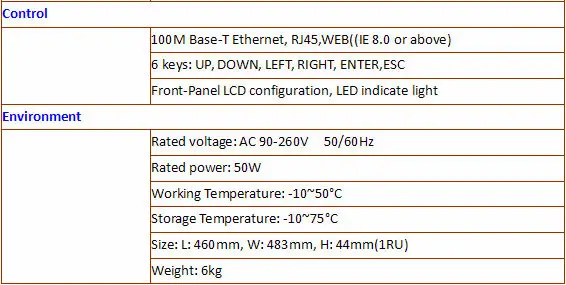

 Technical Specifications






Warranty&Guarantee

  • 5 years warranty
  • If the item is defective within 1 year, you can send it back to us, we will repair it and afford the shipping cost. If it is defective after 1year,you can send it to us to repair, but you should pay the extra shipping cost.
  • Supply stability, please feel free to buy!



Shipment

  • Shipment will be made in time, usually 7 working days.
  • We will offer you the tracking number after shipment.
