GbE IP to IP multiplexer with scrambler

FOB Reference Price:Get Latest Price
$1,300.00 - $1,800.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
DCM700
Input:
two GbE IP
Stream in:
500 mpts/spts
Stream out:
24 TS
Scrambler(option):
up to 4 CAS
Multiplexing:
up to 500 programs
Application:
IPTV Headend Systems
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package, or as per customer's request.
carton. Size: 53*46*14cm.
One Set Per Carton
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 3 To be negotiated



 GbE IP MPEG Processor with Multiplexing, Scrambling



Product Overview

DCM700 Digital Content Manager (DCM) MPEG Processor is a compact 1RU platform capable of processing a

high number of MPEG video streams. The MPEG Processor is the Second generation of intelligent headend

processing equipment where the combination of compactness and flexibility leads to a cost-effective

solution. Based on our experience, brings operational and economic benefits in MPEG processing application.

The optional built-in DVB scrambler allows easy integration with several Conditional Access (CA).

DCM700 Professional DCM platform is an ideal solution for multiplexing, scrambling of MPEG streams which

provide a cost effective, versatile and efficient for delivering digital TV content over IP networks that

Integrates up to 16 separate IP address or Ports and De-encapsulates and Routes

Any or All Selected Transport Streams via GbE IP Inputs Port



Key Features

Up to 2 GbE IP inout per chassis

Up to 1600Mbps GbE IP inputs,up to 800Mbps GbE IP output

Up to 500 input TS,24 output TS,1000 DTV programs, be equivalent to 24 sets of multiplexer and scrambler se        parately

Up to 4 CAS simul-cryption

De-encapsulates and Routes Any or All Selected Transport Streams outputs

Support processing for multiplexing PSI/SI Table

PID filtering,mapping and pass through

Auto-generation and manual upload for SI/PSI information

SPTS and MPTS supported

Transrating of MPEG2/MPEG4 AVC SD and HD

Management via WEB and local front panel

Integrated, compact 1-RU platform saves rack space and reduces operating costs

Low network jitter,low latency,high PCR precision

Easy-to-Use System Management

Real-time monitoring bit rate statistics

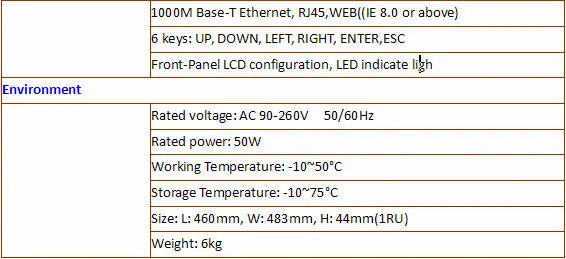

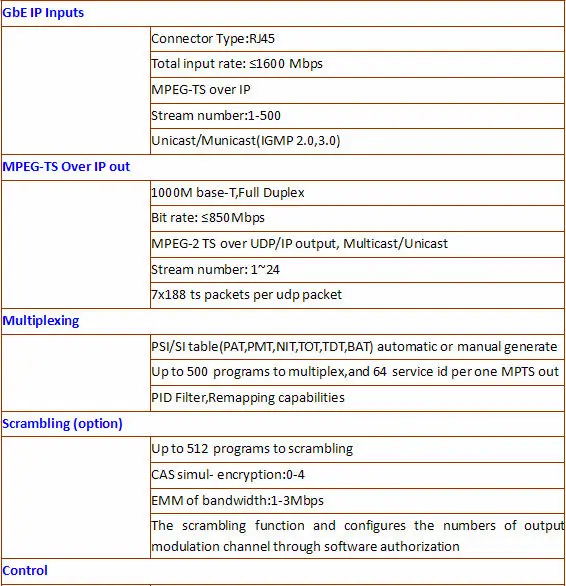

 Technical Specifications




Warranty&Guarantee

  • 5 years warranty
  • If the item is defective within 1 year, you can send it back to us, we will repair it and afford the shipping cost. If it is defective after 1year,you can send it to us to repair, but you should pay the extra shipping cost.
  • Supply stability, please feel free to buy!



Shipment

  • Shipment will be made in time, usually 7 working days.
  • We will offer you the tracking number after shipment.
Our Company

With years of export experience along with best quality, advanced technology and excellent service, Dibdvb Technology has won numerous customers' trust and support all over the world.

0000111

We are mainly engaged in Broadcast tv and iptv business which includes the following several kinds:
1. Carrier grade broadcast cable tv equipments: Broadcast Encoder and Transcoder, Professional IRD, Mux and Scrambler, Modulator, Transmitter and Set top box
2. Carrier/Economy grade multiscreen iptv encoder/transcoder
3. Digital Video Modulator with HD MI/CVBS inputs, DVB-C/T/ISDB-T/ATSC modulator in 1RU/Compact Chassis
4. Broadcast DVB-C/T2/MMDS solutions
5. Carrier grade iptv solutions
6. Hotel tv systems base on ALL-IP or ALL-RF solution
7. Docsis3.0 CMTS Over Coaxial Cable to Internet
8. OLT and ONU GEPON

Production & Testing--dibdvb



Certifications



Packing & Delivery

packing

FAQ

1. Terms of Payment: TT, Paypal, Western Union, AliPay
2. Terms of Delivery: Air Express as DHL, FedEx, TNT, UPS, EMS, for details, please contact sales manager
3. Terms of Warranty: 5 Years and 24/7 hours online technical support
4. OEM ability: Yes. Customization details is depending on customer requirements.
5. Lead time: Generally 5 working days, for special orders, please contact sales manager for confirmation.

Contact us

111

MS.Lynne

    1Lynne(at)dibdvb.com                              skypedibdvb06                        QQ3329003096
