Up to 24 chs av to qam modulator with mux scr with dvb-c tuner input, 128ip input; qam and ip output

FOB Reference Price:Get Latest Price
$1,099.00 - $2,299.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
MSM620
Input:
24 CVBS, 1 DVB-C Tuner,128 IP input
Output:
RF and RJ45 Ethernet
Video encoding:
MPEG-2
Audio encoding:
MPEG1 Layer II, AC3
Modulating:
4*DVB-C/T
Multiplexing:
4 channels
Scrambling:
4 channels (DVB-C)
Support:
LOGO, QR code, OSD insertion
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard package
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description

MSM620 Provides a highly flexible solution for delivery of any cable and encrypted Satellite set top box, Blue Ray and DVD player, IPTV video content all SD MPEG-2 video can be simultaneously output over IP and RF(DVB-C/T), No Needs to wire new cables as it shares the existing antenna coax cables to deployed with Analog TV network.

This unit is designed especially for high channel density Distribution Video Engineering project, which can support rapid deployment, OSD/Logo Insertion and compatibility IP source and DVB-C RF inputs simultaneously. It used in some of the most Hotels in the world, it is an ideal solution for environments where displays to an unlimited number of displays over almost any distance, such as Small Digital TV system, Hotel, Restaurants, Stadiums, Campus, Entertainment facilities, Airports, Theaters, Education Markets.

MSM620 Big advantage, it works with 128 UDP/RTP IP IGMP2.0 source and 1 Clear DVB-C /Tuners inputs together, and up to 24 AV inputs. Integrate All in One Multiplexer and Scrambling MPEG-TS out Over 4 adjacent RF Channels as mirrored of 4 MPTS over LAN network.It is also characterized with high integrated, high performance and breakthrough price.

Features

●Distribute Up to 24 channels of SD content over RF (DVB-T/C) to an unlimited number of TVs

●AV Mode Select 8,12,24 Ports,128 IP input over UDP/RTP

●1*DVB-C tuner input for re-mux (only for DVB-C RF out)

●Simultaneous video output in RF over coax and IP over Ethernet

●Audio gain adjustment supported

●Support 4 Group of DVB-Simulcrypt CAS Scrambling for DVB-C QAM

●4 separate multiplexing and Up-converter modulating adjacent carrier out

● MPEG1 Layer II, AC3(2.0) Audio encoding

●VBR and CBR mode

●LCN (Logical Channel Number) support

●DVB-C (EN300 429) and ITU-T J.83A/B supported

●PSI/SI editing & inserting

●PID Remapping & Filtering

●Support PCR correct and PCR interval adjusting

●Optional LOGO,QR code,OSD insertion for every,All or Each module of local channel

●Superior Shoulders and Excellent modulation quality MER

●Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

●Easy-to-Use System Management via Web

●Log information printing

●Lowest Cost per channel - Breakthrough Price !

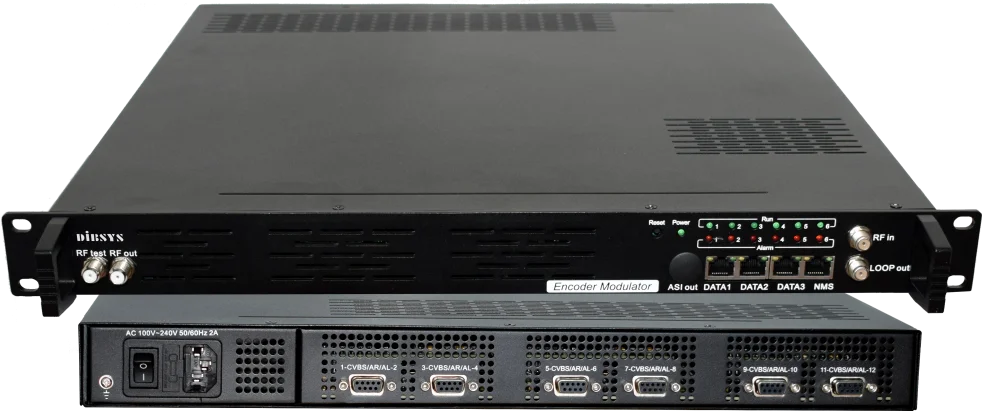

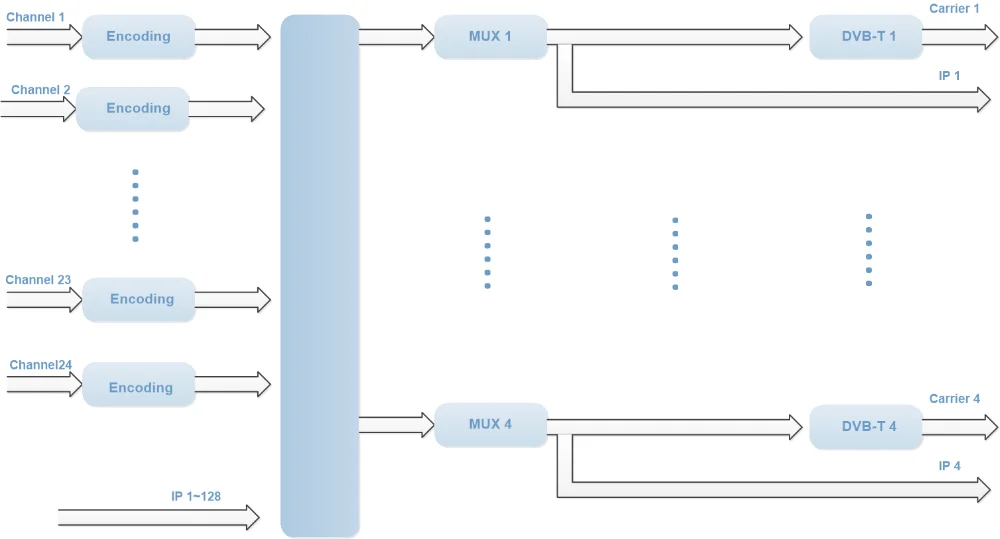

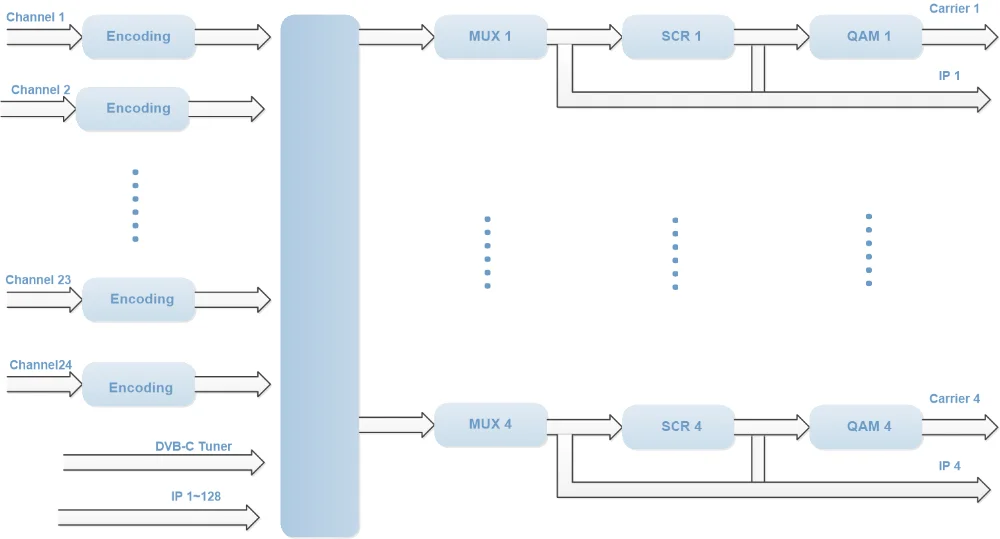

Principle Chart

Specifications
Composite Inputs
24 RCA and 48 Pairs of R/l Analog inputs
PAL, NTSC, 75Ω unbalanced
Connector 9-pin sub-D female
Return loss ≥ 35 dB, 10Hz to 5.5MHz
(optional for 8,12 channels)
1 DVB-C Tuner (only for DVB-C RF out), F type
128 IP input over UDP and RTP
Selectable GbE1,GbE2 Port RJ45,850Mbps per port
Multicast(IGMP2.0/3.0)/Unicast, IPTV Sync
Down/Cross Conversion
Input
720×576i
720×480i
Output
720×576_50i,704×576_50i,640×576_50i, 352×288_50i
720×480_60i, 544×480_60i, 352×480_60i
320×288_50i, 176×288_50i, 176×144_50i
352×240_60i,320×240_60i,176×240_60i, 176×120_60i
Frame Rates
50fps,60fps
Video Processing
Input Format
PAL-BGHID/PAL-CN/PAL-M/PAL-60
NTSC/NTSC-M/NTSC-4-43


Image Setting
Brightness: 1 - 255
Contrast: 1 - 255
Saturation: 1 - 255
Hue: -128 – 127
Video Sharpness
Close, Smoothness, General, Sharpness
Encoding
MPEG-2 MP@ML
Bit-rate
0.5Mbps~8Mbps
Encoding Schemes
VBR,CBR
GOP Structure
IBBP
Aspect Ratio
4 : 3, 16 : 9
Audio Processing
Encoding
MPEG-1 Layer 2,AC3-2.0
Sampling rate
48KHz
Resolution
24-bit
Bit-rate
64kbps,128Kbps,192kbps,224kbps,
256kbps,320kbps, 384kbps
Audio Gain
-12 - +40
Multiplexing
Maximum PID
180 input per channel
Remapping
PID remapping ( automatically or manually)

PSI/SI
SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
Accurate PCR adjusting
PCR PID Sync
Scrambling(Only for DVB-C)
Simul-Crypt  CAS number
4
Scrambling algorithm
DVB-CSA
Table update
CAT/PMT
ECMG interface
TCP
EMMG interface
TCP/UDP
EMM bandwidth
0~3Mbps/TS
General RF Modulation
Connector
F-Type, 75 Ω
Ports
2 RF ports per module
RF Monitor Level
20 dB below RF output
Output Return Loss
14 dB
RF frequency
50~960MHz, 1KHz step
Numbers of RF Channel
4
DVB-C Mode
QAM Encoding
EN300 429& ITU-T J.83 Annex A (DVB), Annex B
MER
≥40db
Bandwidth
6Mhz(Annex B) or 8 Mhz(Annex A)
Symbol Rate
5.0Msps~7.0Msps, 1ksps stepping
QAM Constellations
16/32/64/128/256QAM(Annex A)
64/256QAM(Annex B)
RF output level
-20~ 0dBm (87~107 dBµV), 0.1db step
DVB-T Mode
Standard
EN300744
FFT mode
2K
Bandwidth
6Mhz, 7Mhz, 8Mhz
Constellation
QPSK, 16-QAM, 64-QAM
Guard Interval
1/4, 1/8, 1/16, 1/32
FEC
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥42 dB
RF output level
-28~ -3dBm (79~104 dBµV), 0.1db step
Stream output
MPTS IP out Configurable mirroring per QAM
MPEG-TS Over UDP/RTP, 1*1000(GbE1 Port)
7x188 Bytes per TS packet
Filter Null Packet
Source TS select:Scrambled, No Scrambled
System function
Web Network management
English language
Ethernet software upgrade
Save/Restore/Facture Set/Backup/Load Setting
Environment
Dimension(W×L×H)
482mm×410mm×44mm
Approx weight
8kg
Temperature
0~45℃(Operation); -20~80℃ (Storage)
Voltage range
100 to 120/200 to 240V AC ±10%; 50/60Hz
Power consumption
70W
Our Company

With years of export experience along with best quality, advanced technology and excellent service, Dibdvb Technology has won numerous customers' trust and support all over the world.

We are mainly engaged in Broadcast tv and iptv business which includes the following several kinds:


1. Carrier grade broadcast cable tv equipments: Broadcast Encoder and Transcoder, Professional IRD, Mux and Scrambler, Modulator, Transmitter and Set top box
2. Carrier/Economy grade multiscreen iptv encoder/transcoder
3. Digital Video Modulator with HD MI/CVBS inputs, DVB-C/T/ISDB-T/ATSC modulator in 1RU/Compact Chassis
4. Broadcast DVB-C/T2/MMDS solutions
5. Carrier grade iptv solutions
6. Hotel tv systems base on ALL-IP or ALL-RF solution
7. Docsis3.0 CMTS Over Coaxial Cable to Internet
8. OLT and ONU GEPON

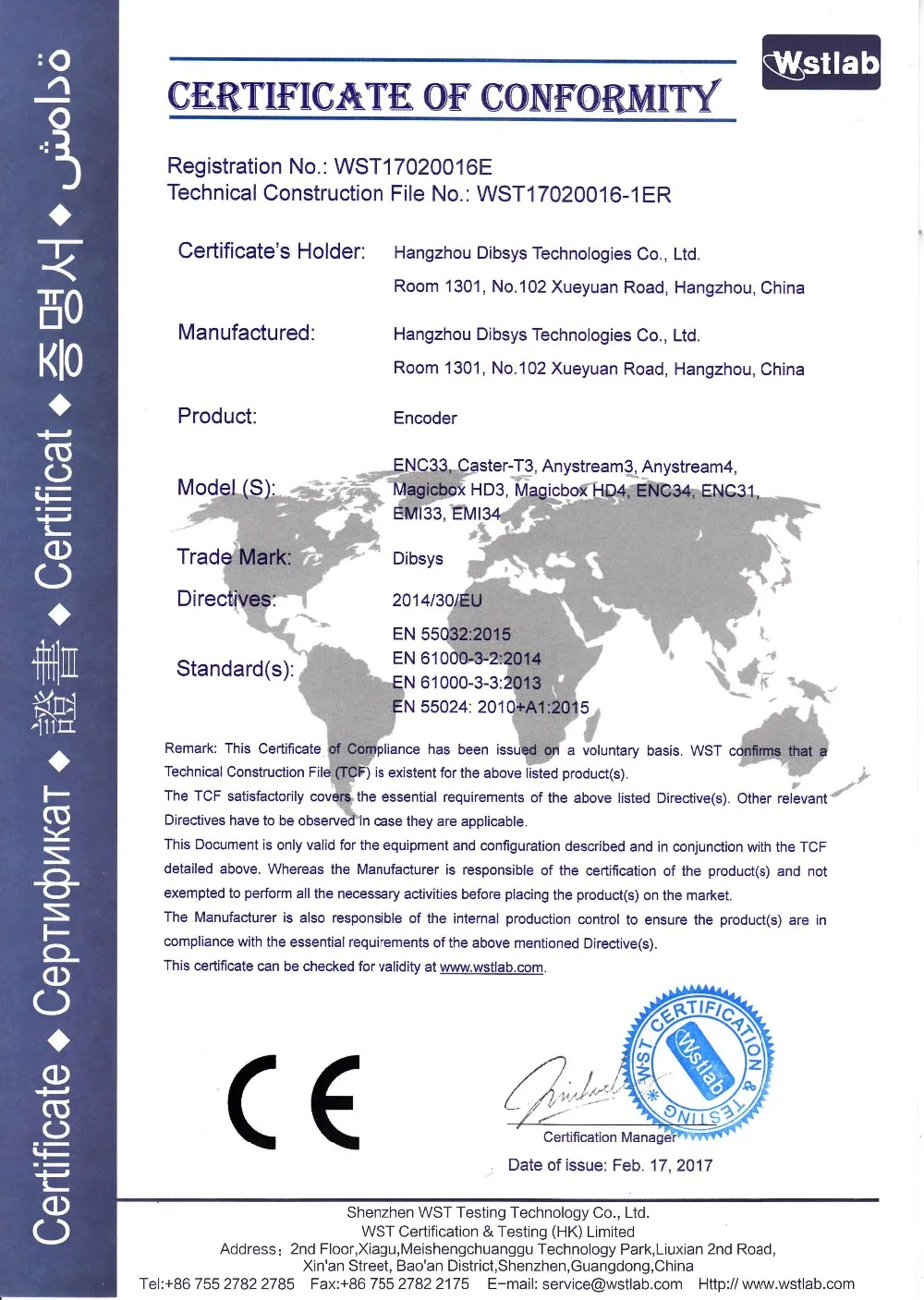

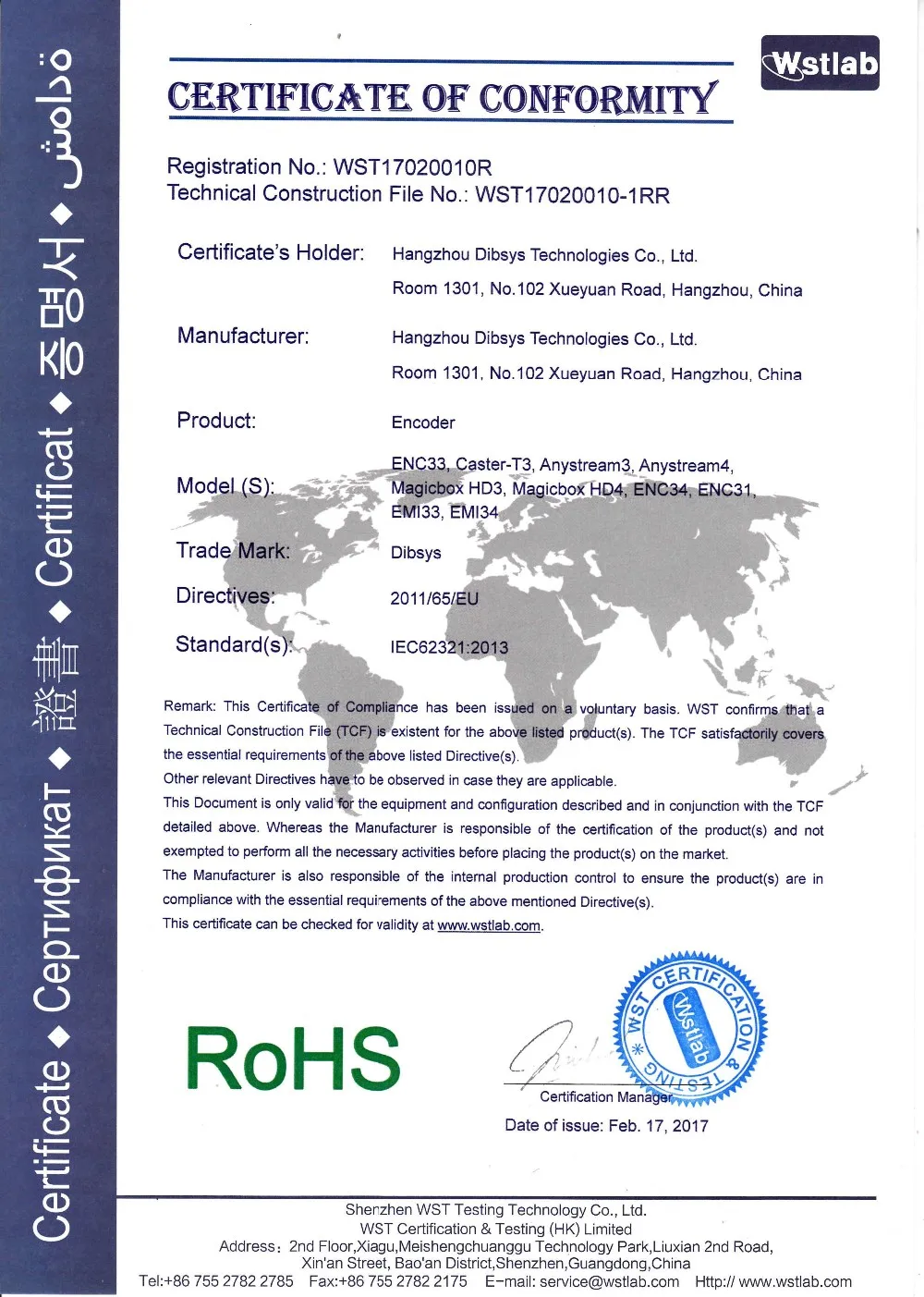

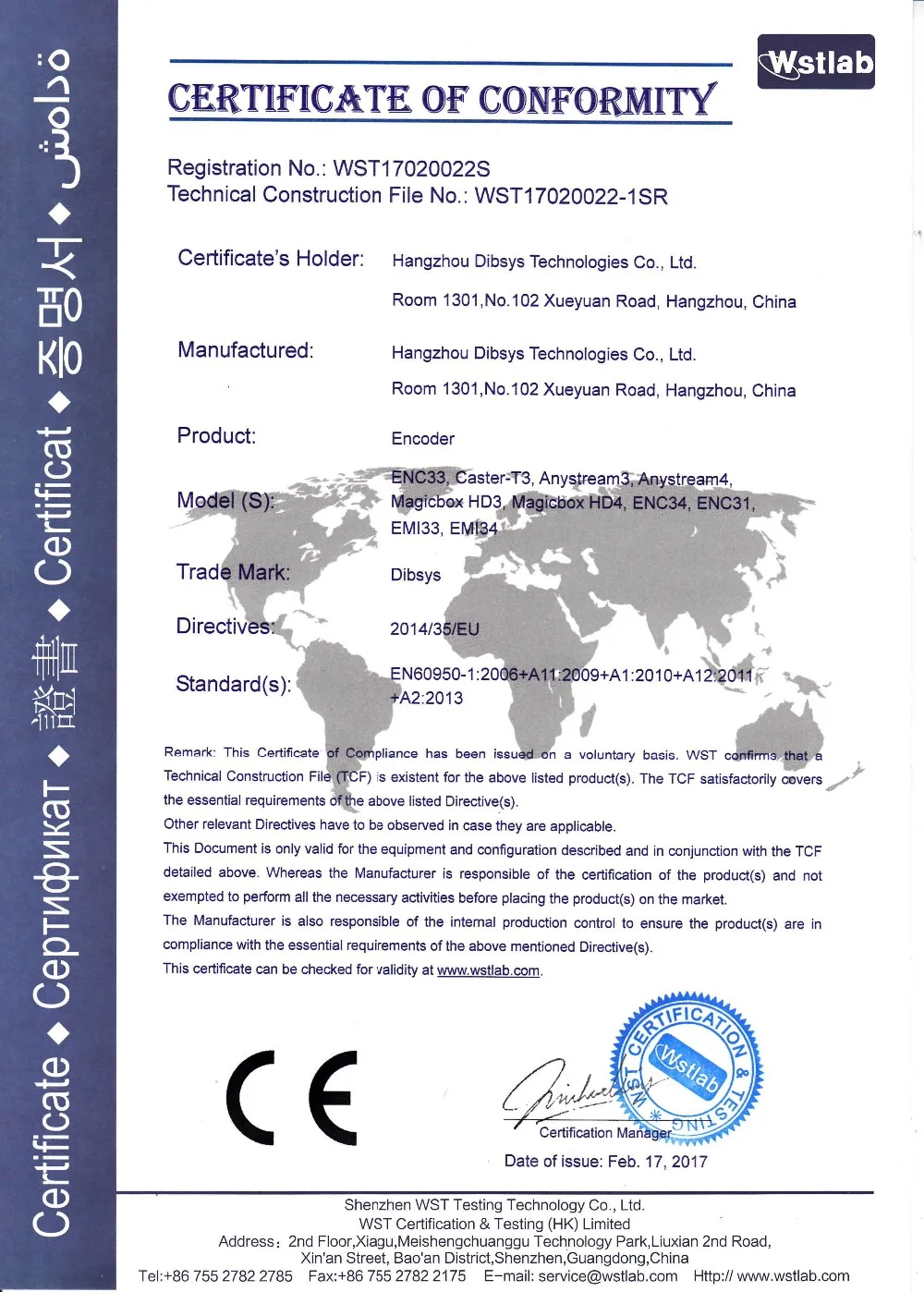

Certifications
