1536 IP to 48 QAM modulator with multiplexing and 12 scrambling channels

FOB Reference Price:Get Latest Price
$1,000.00 - $2,500.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 5 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
M60
Input:
IP
Output:
IP/RF 48QAM
IP Input:
Max 1536 IP in thru 3 GE ports
IP Output:
Up to 48 IP output (IP 1~24 out thru Data1
ITU-T J.83 A/B/C modulation:
support
6QAM, 32QAM, 64QAM, 128QAM, 256QAM:
support
RS (204,188) encoding:
support
6 simul-crypt CAs and 12 scrambling:
support
Management:
We b
Application:
Cable digital TV headend system base on IP network
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package, or as per customer's request.
Port
Shanghai/Hangzhou
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description

M60 48 in 1 IP QAM Modulator

M60 is a Multi-functional QAM (DVB-C) Modulator combining multiple GE input, transport stream multiplexing, scrambling, QAM modulation channels in a 1U rackmount unit. It up to 1536 IP (MPTS/SPTS) input through 3 GE Prot, up to 48 IP over UDP/RTP/RTSP protocol output with Mux, and 2 RF ports for 48 non-adjacent QAM carries output. It also supports up to 6 simul-crypt CAs and 12 scrambling channels.



Designed to allow CATV operators to aggregate multiple SDTV/HDTV programs received in IP format and to deliver them over a standard coaxial distribution network, M60 supports scalable, reliable, high performance video stream services to cable operators. It is mainly applied to the cable DTV head-ends, sub head-ends and VOD networks.



M60 48 QAM Modulator enables cost-effective distribution of SD/HD digital signage and SD/HD subscriber sources using existing broadband coax cabling in sports, retail and entertainment facilities, corporate offices, colleges, schools and worship centers. Highest cost performance in low budget.



Features
  • Max 1536 IP in thru 3 GE ports (each port can input max 512 IP), 100/1000M self-adaption Ethernet Port (SFP interface optional)
  • Support ITU-T J.83 A/B/C modulation, the output RF range is: 50~960MHz, 1kHz stepping
  • Modulation module can work in 16QAM, 32QAM, 64QAM, 128QAM, 256QAMl
  • Supports 6 simul-crypt CAs and 12 scrambling channels
  • 48 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M self-adaption, Ethernet Ports (SFP)
  • Supports RS (204,188) encoding l
  • PID remapping (auto/manually optional)
  • PCR accurate adjusting
  • PSI/SI table automatically generating
  • Easy-to-Use System Management via Web

Application

  • Cable digital TV headend system base on IP network



  • Broadcast Application built-in multiplexing and scrambling function



  • Advertising, monitoring, training and educating



  • Upgrade all your analog Head-ends to cable DTV Solution



  • Enterprise, Hotel, campus, hospital, Public Place

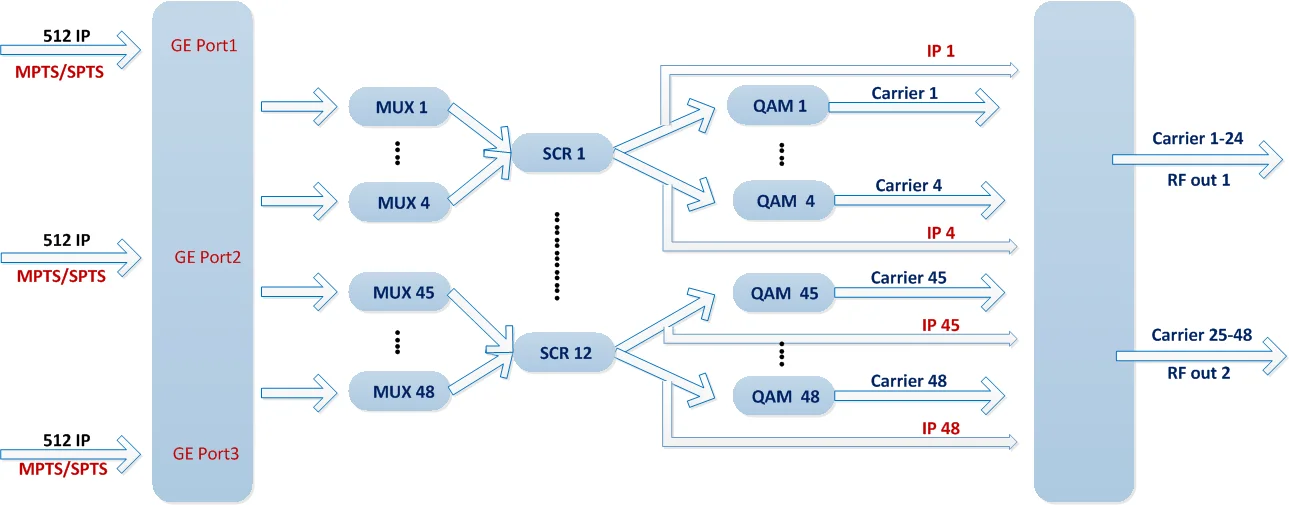

Principle Chart

Specification



IP Interface

Interface

3 GE ports

[Data 1 & Data 2 bi-directional ports,

Data port (located on front panel)

100/1000M self-adaption Ethernet Port (SFP interface optional)

Input

Max 1536 IP in thru 3 GE ports

each port can input max 512 IP

Output

Up to 48 IP output (IP 1~24 out thru Data1,IP 25~48 out thru Data2)

Data Format

MPEG TS-Over-IP/UDP/RTP

Addressing&Protocol

Multicast and Unicast (IGMP V2/V3)

Transmission Rate

Max 840Mbps for each GE input

Multiplexing



Capacity of Processing

Input Channel

up to 1536

Output Channel

48

Max PIDs Remapping

512 per output channel

PID remapping

by automatically and manually

PCR

accurate adjusting

PSI/SI

PSI/SI table auto-generation

Scrambling Parameters

Max simulcrypt CA

6

Scrambling algorithm

Comply with DVB-CSA

Scramble Channel

12

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation Output (QAM Module)

Output Connector

2 x RF output ports

Connector Type F-Type (Female, 75Ω)

Carrier 1~24 out thru RF1, 25~48 thru RF2

RF Frequency

50~960MHz, 1kHz stepping

MER

≥ 40dB

Output Level

-20dBm~+10dBm(87~117dbµV), 0.1dB stepping

Bandwidth

6 or 8MHz

Qty of QAM channel

48 non-adjacent carrier

Modulation Standard

EN300 429/ITU-T J.83 Annex A/B

QAM Constellations

16/32/64/128/256QAM (Annex A)

64/256QAM (Annex B/C)

Symbol Rate

3600~7000Ksps, 1ksps stepping

5057Ksps (J.83B, 64QAM)

5361Ksps (J.83B, 256QAM)

FEC

RS (204, 188)

Management

Management Port

Web-GUI, RJ45, 100M

Management

Web management

Network management software (NMS) supporting

Language

English

Environment

Power SupplyAC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Power consumption

15.4W

Operation temperature

0°C ~45°C (32°F ~113°F)

Storage temperature

-20°C ~80°C (-4°F~176°F)

Dimensions

420 (W)x440(L)x44.5mm(H)  (1RU)

Weight

3 kg






 Specifications are subject to change without notice.
