32 channels analog modulator catv with digital ip input

FOB Reference Price:Get Latest Price
$1,999.00 - $2,899.00 / Unit | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Dibdvb
Model Number:
IPM6100
Input:
2 GE ports (max 64 IP input)
Modulation:
32 non-adjacent carriers output
Audio Decoding:
MPEG-1/2 Layer 1/2, (HE-)AAC
Video Decoding:
H.264/AVC Level 4.1 HP, MPEG-2 MP@HL
Multi-system (PAL B/G/D/K/M/N):
support
Automatic HD to SD downscaling:
support
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package, or as per customer's request.
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description

IPM6100, analog modulator can ingest multiple HD or SD IP streams in either MPEG-2 or MPEG-4 format and convert them to PAL/NTSC modulated RF analog outputs for delivery to legacy analog TV networks. It can decode MPEG-2 and H.264 encoded video streams in SD and HD quality. In case of HD decoding, automatic downscaling to SD resolution is performed. Numerous audio formats and modes can be decoded and modulated on TV channels.



IPM6100 ensures a high agility inside the whole RF output frequency range. This enables full flexibility and makes the most efficient use of the available channel spectrum. This allows operators to support legacy analog tiers of service while simplifying headend equipment and power consumption and integrating with modern IP video headend architectures.

Features

  • 2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input



  • Support H.264/AVC, MPEG-2 TS Decapsulation



  • MPEG-1/2 Layer 1/2, (HE-)AAC audio decoding



  • Processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or SECAM TV programs (SECAM is under development)



  • 32 non-adjacent carriers output



  • Automatic HD to SD downscaling



  • Multi-system (PAL B/G/D/K/M/N) support



  • Support Web-based Network management

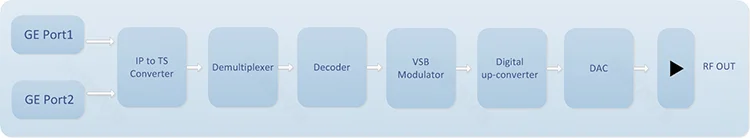

Principle Chart

IPM6100

Technical Specifications

Input

Types

2 GE ports (max 64 IP input)

Max 840Mbps for each GE input

Stream

UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Packet Length

188 / 204 Bytes

Decoding Parameters

Video

H.264/AVC Level 4.1 HP, MPEG-2 MP@HL

Audio

MPEG-1/2 Layer 1/2, (HE-)AAC

Data

Teletext, Teletext subtitles, DVB Subtitling

Resolution

480I, 576I, 720P, 1080I, 1080P

Aspect ratio

4:3/16:9

Modulation Parameters

Number of channels

up to 32

Connectors

75Ω, F-jack

Frequency range

47 – 862MHz, digital modulation

Output level

maximum 112dBμV

Return loss

≥ 14dB

Spurious frequency dist.

≥ 60dB

Stereo cross talk

> 55dB

Residual carrier accuracy

1%

TV standard

PAL B/G/D/K/M/N, NTSC, SECAM

(under development)

Video-signal to noise ratio

≥ 60dB

Network Interface

Management

1 x 100 Base-T Ethernet (RJ 45)

Data

2 x 1000 Base-T Ethernet (RJ 45)

Protocol

IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP,

HTTP, IGMPv2/v3

Others

CNR(after internal combining)

60 dB

SNR (after internal combining)

> 53 dB

Sampling frequency

48, 44.1, 32

Output volume adjustment

0 - 100 %

General

Dimension

420mm*440mm*44.5mm (WxLxH)

Temperature

0~45℃(operation), -20~80℃(storage)

Power Supply

AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz

 Specifications are subject to change without notice.
